Autopa Swing Gate – 3 m to 7 m Width (1381064)

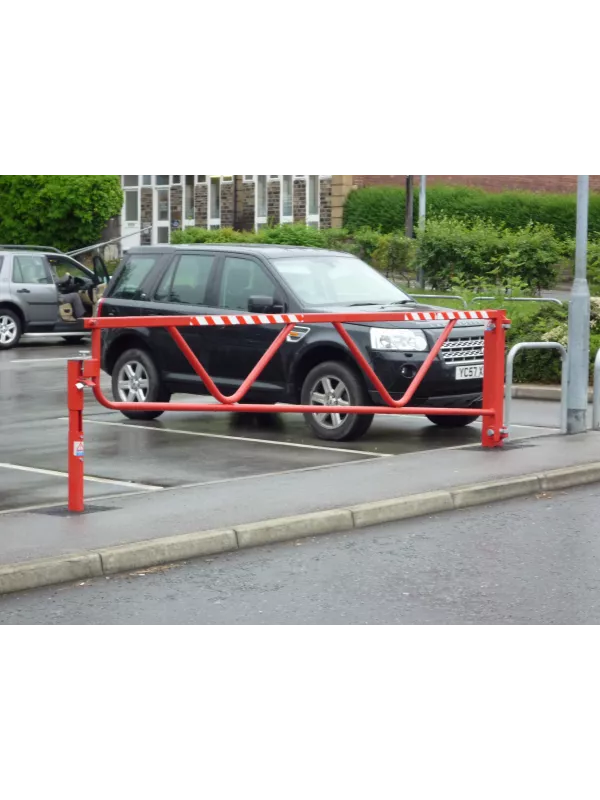

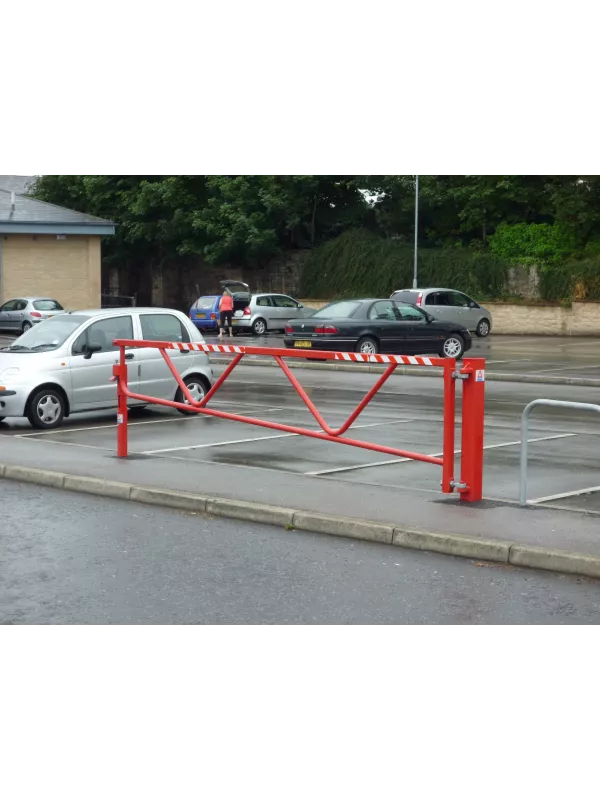

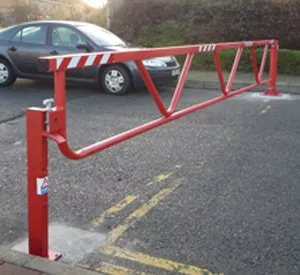

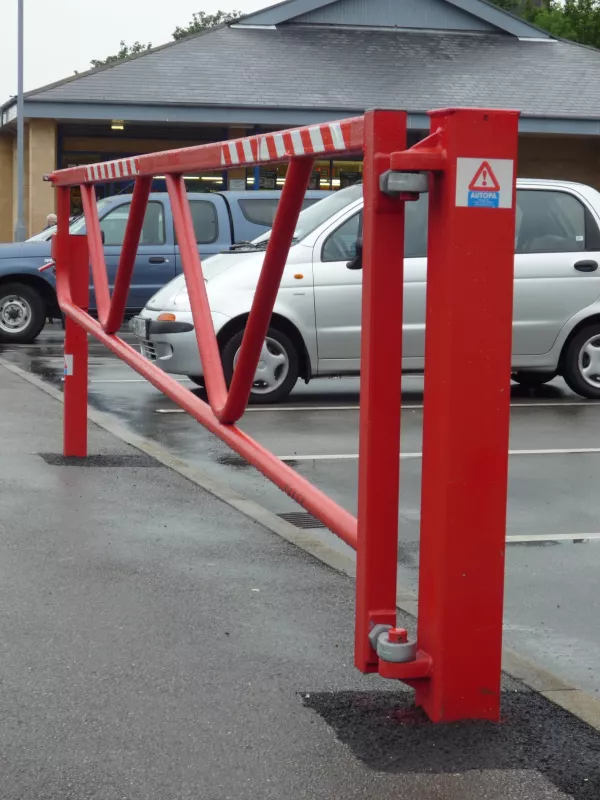

The Autopa Swing Gate is a manually operated, heavy-duty entrance gate made of galvanised mild steel, offering widths from 3 to 7 metres. Standard red-coated (other colours BS/RAL on request), it can be bolt-down or concrete-in and incorporates safety features like a self-latching catch post and low edges for increased security and vehicle access protection. Fully British-made, this gate includes a 12-month guarantee when installed correctly.
Robust Security Gate with Enhanced Safety
Engineered for commercial and industrial sites, the Autopa Swing Gate ensures controlled access with proven durability. Ideal for locations requiring occasional vehicle passage without permanent automation.
It boasts several built-in safety features—a self-latching catch post, short leading edge beam, and low bottom edge—to prevent unintended swinging and reduce risk of impact. For enhanced security, a second catch post enables locking in both open and closed positions (padlock not included). Installation options include bolt-down or concrete-in mounting to meet site requirements.
Color finish is galvanised base with a standard red powder coat, customizable to any BS/RAL colour profile upon request. Fully British manufactured and backed by a 12-month guarantee.
Key Features
- Widths:
3 m, 4 m, 5 m, 6 m, 7 m - Mounting Styles: Bolt‑down or concrete‑in
- Material:
Galvanised mild steel, steel tube sections - Colour:
Standard red; alternative BS/RAL options available - Safety Features:
- Self‑latching catch post
- Short leading edge beam
- Low bottom edge to minimise swing hazards
- Locking:
Can be padlocked open or closed (second catch post included; padlock not included) - Finish:
Durable galvanised and powder‑coated (weather‑resistant) Red as standard, other colours available on request. - Warranty:
12 months (conditions apply)
Applications
- Commercial sites, industrial yards, and factory entrances
- Occasional vehicle access control with manual operation
- Areas needing robust steel gate with secure locking
- Safety-conscious environments benefitting from low-edge design
Technical Specifications
- Main Tube: 120 × 120 mm, 3 mm wall thickness
- Gate Arm: 60 × 60 mm square tube
- Concrete-In Depth: Below ground 600 mm
- Bolt-Down Requirements: Concrete pad at least 600 mm deep, M16 bolts (4 per leg)
