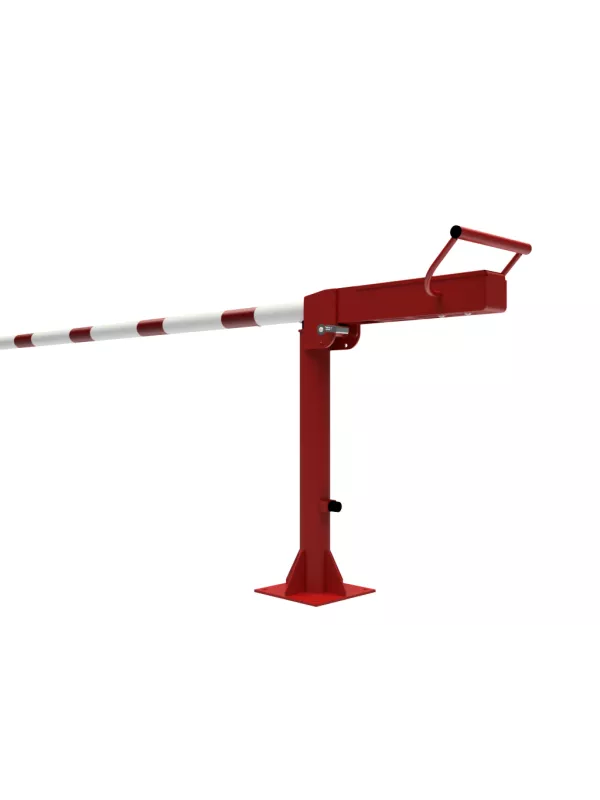

Autopa Manual Arm Barrier – 3m to 7m, Galvanised & Powder Coated, Bolt Down or Concrete In (138106)
The Autopa Manual Arm Barrier is a UK-manufactured solution designed for reliable, secure access control in commercial, industrial, and restricted-use settings. Ideal for locations where access needs to be manually controlled during set hours, this robust barrier features a galvanised mild steel body and lightweight aluminium boom arm.
Available in boom lengths from 3m to 7m, the barrier comes in either bolt down or concrete in formats to suit a range of installation environments. Finished in a durable powder-coated red (custom colours available), it provides simple, cost-effective manual traffic management.
Key Features:
• Available in boom lengths: 3m, 4m, 5m, 6m, and 7m
• Galvanised steel body with aluminium boom for strength and durability
• Powder coated red finish as standard (RAL/BS colours available on request)
• Supplied in bolt down or concrete in configurations
• Locks securely in both raised and lowered positions
• Optional accessories: pogo sticks, folding skirts, catch posts, double span kits
• No electrics required – simple, manual operation
• Designed and manufactured in the UK
• 12-month manufacturer’s guarantee (when correctly installed)

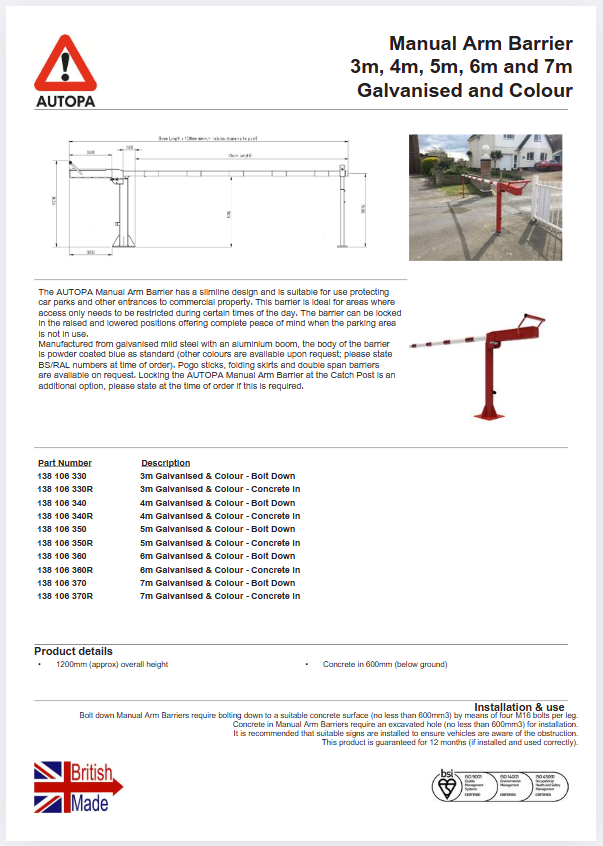

Specifications:
• Barrier Height:
– Above ground: Approx. 1200mm
– Concrete in depth: 600mm
• Installation:
– Bolt Down: Requires M16 fixings into a 600mm³ concrete base
– Concrete In: Requires a 600mm³ excavated hole
• Materials:
– Body: Galvanised mild steel
– Boom: Aluminium
• Finish:
– Galvanised and powder coated (custom RAL/BS colours on request)
• Locking Mechanism:
– Manual catch, lockable in both raised and lowered positions
• Accessories Available (on request):
– Pogo stick
– Folding skirt
– Catch post
– Double span setup
Part Numbers:
• 3m: 138 106 330 (Bolt Down) / 330R (Concrete In)
• 4m: 138 106 340 / 340R
• 5m: 138 106 350 / 350R
• 6m: 138 106 360 / 360R
• 7m: 138 106 370 / 370R
Applications – Ideal For:
• Car parks with restricted opening hours
• Commercial site entrances
• Industrial units and depots
• Business parks and private estates
• Temporary or cost-effective traffic control zones
The Autopa Manual Arm Barrier is the perfect solution where non-electric, secure access control is required. Built for performance and longevity, it offers site managers and facilities teams peace of mind with reliable, UK-made quality.
