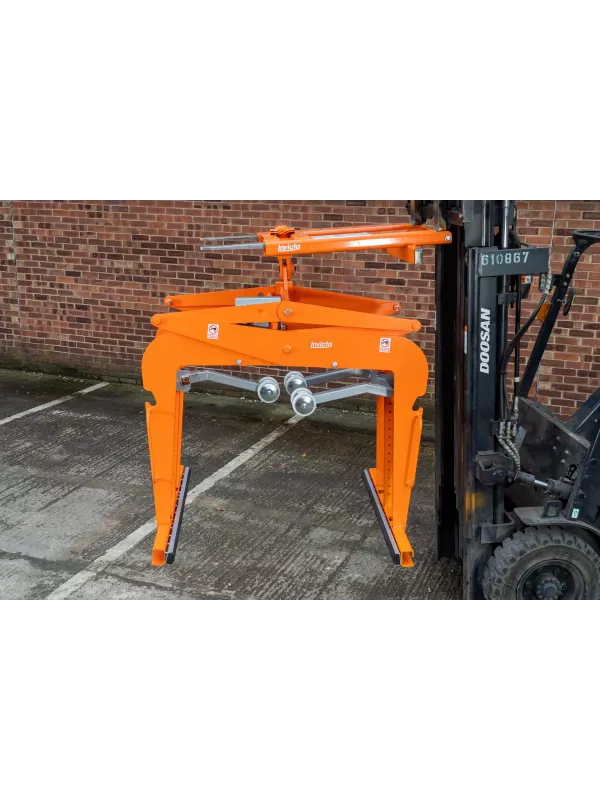

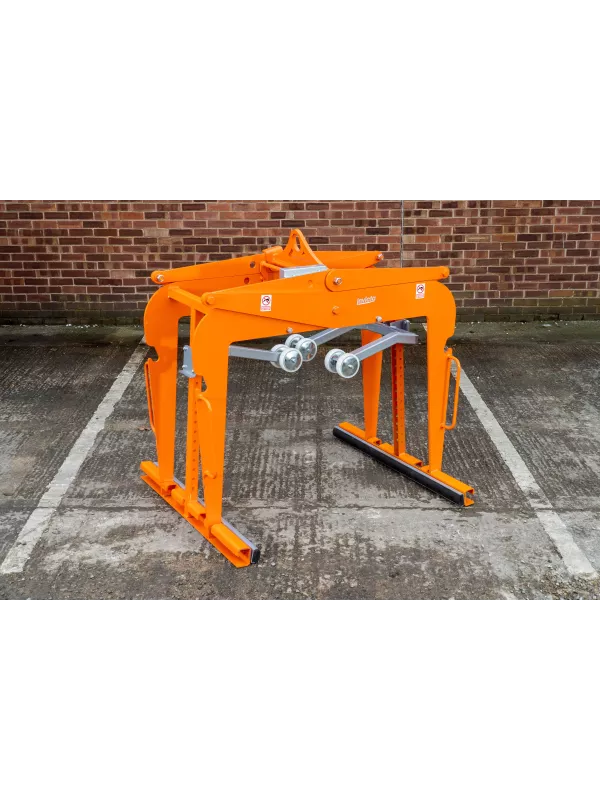

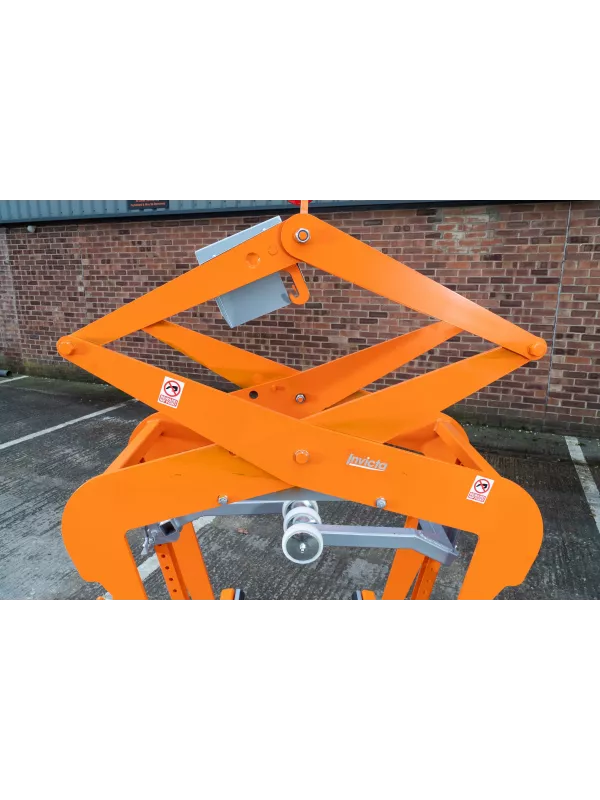

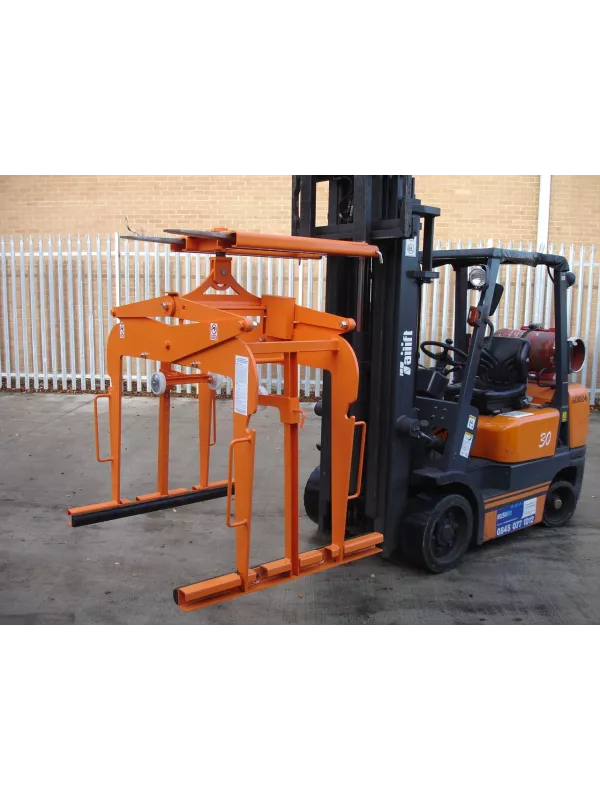

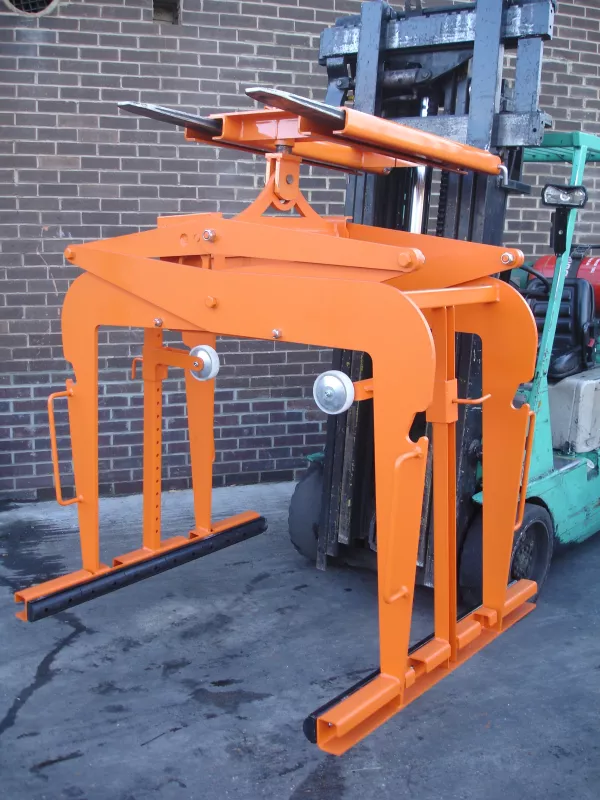

Invicta Forklift Standard Mechanical Scissor Grab – Block and Brick Pack Handling (ISG-5)
The Invicta Forklift Standard Mechanical Scissor Grab (ISG-5) is specifically designed to lift, transport, and release block and brick packs safely across construction sites and yards. Fully mechanical in operation, this robust attachment can be used with a forklift or overhead crane/HIAB—without requiring the operator to leave the safety of the cab.
Built for industrial reliability, the ISG-5 features a fully automatic mechanism, segmented rubber pads for grip, adjustable internal pack height, and dedicated hooks for an optional safety net when lifting overhead. Painted in high-visibility orange, this grab ensures safety and ease of use on-site.
Standard Features:
• External handles for positioning
• Adjustable internal pack height for various load sizes
• Profiled hooks for optional restraint net
• Fully automatic operation
• Segmented interchangeable rubber pads
• Painted bright orange for enhanced visibility and safety
Specifications:
• Model: ISG-5
• Capacity: 2000kg
• Weight: 270kg
• Centre of Gravity: 750mm
• Span: 600–1130mm
• Internal Height: 100–925mm
• Overall Height: 1430mm
• Overall Width: 1500mm
• Pad Length: 1200mm
Operation Instructions:
Fit rubber pad arms to the grab base (if not pre-installed) and secure with two safety lynch pins per pad.
Connect the lifting pin from either the Self Locating Yoke or swivel hook (sold separately) through the lifting eye.
Ensure the grab is fully open before approaching the pack.
Adjust actuator wheels so the rubber pads sit in the bottom half of the bottom row when wheels contact the top of the pack.

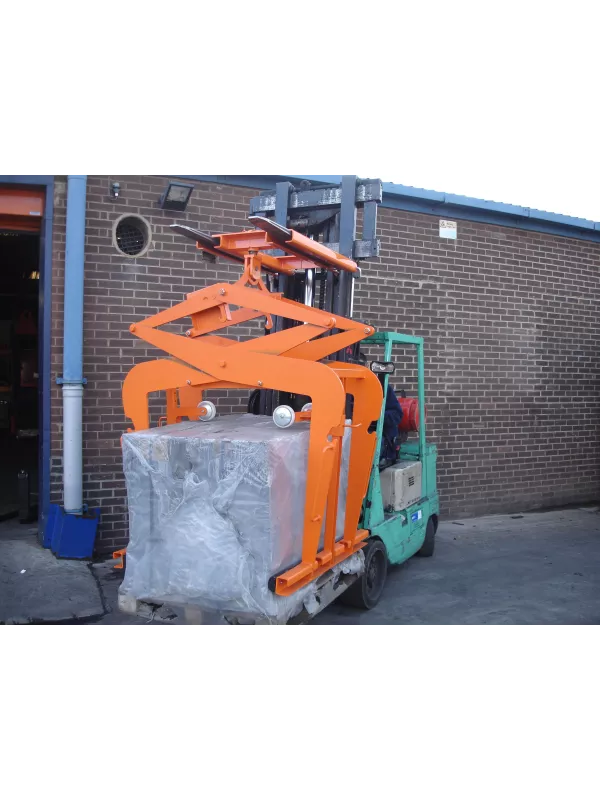

Lower the grab gently onto the pack; once closed, lift to engage the pads and secure the load.
If lifting overhead, fit a restraint net and secure into the four profiled hooks.
Transport to the required location and lower until the actuator wheels touch the surface. Remove net (if used), allow arms to release the pack, and fully close the grab.
Lift the grab clear – now locked open and ready for next use.
• Weekly inspections are required, focusing on weld points, lifting eye and pad arm wear, locks, latches, bolts, and rubber pads
• Treat surface rust in critical areas with appropriate primers and paint
• Lightly grease hinges, latches, locks, and springs
• Any damage or failure must be reported and resolved before use
• Product is certified for six months from the date of manufacture. Re-testing must be conducted as per HSE guidelines by a competent person
Health & Safety Guidelines:
• Operators must be fully trained in correct use and maintenance procedures
• Only lift stable, banded packs of blocks
• Never stand under or between the grab during operation
• Always use a safety net when lifting overhead
• Centre the load to ensure proper balance
• Avoid shock loading or trapping fingers between moving parts
• Always close the grab between operations to reset the release mechanism
