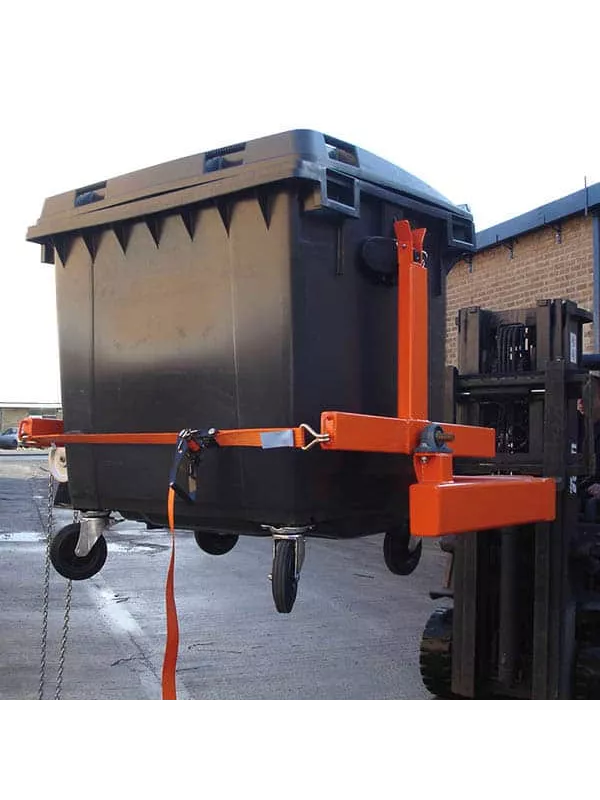

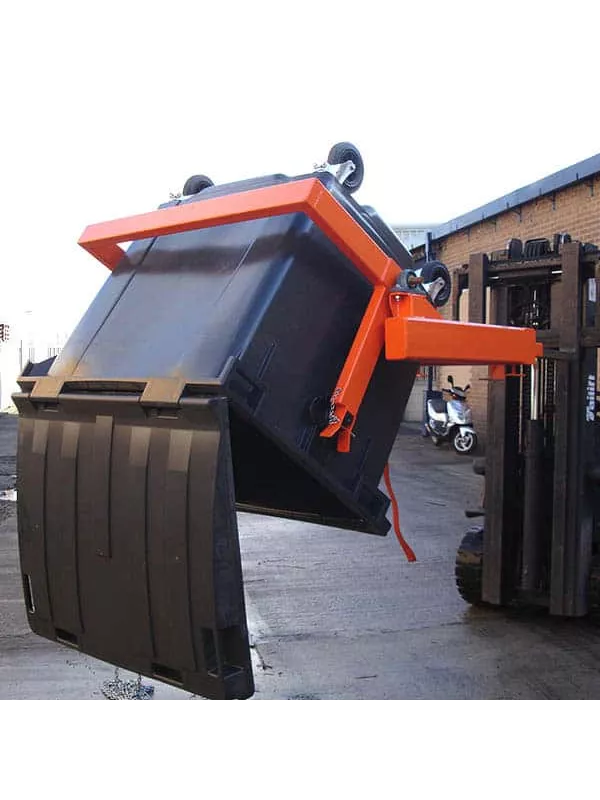

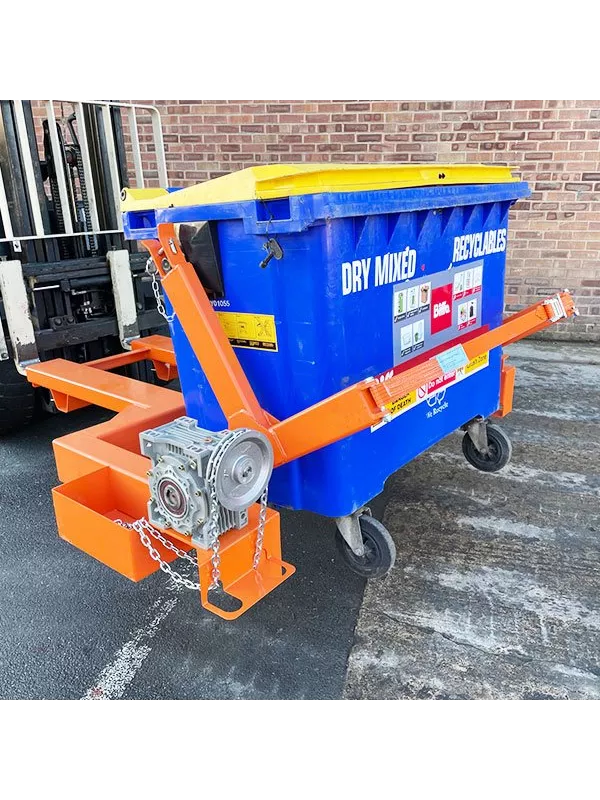

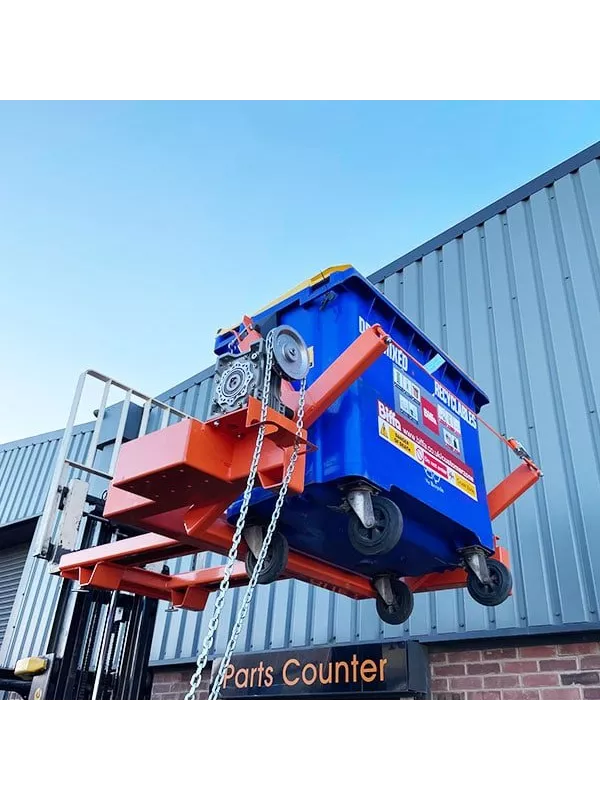

Invicta Forklift 1100 Litre Wheelie Bin Lifter (IWBL-2)
The Invicta Forklift 1100 Litre Wheelie Bin Lifter (IWBL-2) provides a safe and efficient solution for lifting, transporting, and emptying large wheelie bins with side trunnions. Designed for industrial and commercial use, it’s operated via a 50:1 geared gearbox and 6-metre endless chain, allowing for precise control from ground level.
Built for durability, the IWBL-2 includes zinc-plated twist screws and a ratchet tensioner strap for secure attachment. Its bright orange finish ensures high visibility in busy environments, making it a reliable choice for safe and compliant waste handling.
Key Features:
• Designed for 660 and 1100 Litre wheelie bins with side trunnions
• Safe Working Load (SWL): 600kg
• 50:1 geared gearbox for safe, controlled lifting and tipping
• 6-metre endless chain for operation from ground level
• Zinc-plated twist screws and ratchet tensioner strap for secure bin retention
• Painted bright orange for durability and site safety
Specifications:
• Model: IWBL-2
• Weight: 170kg
• Centre of Gravity: 1240–1410mm
• Load Load Centre (LLC): 1300mm
• Max Fork Section: 150 x 50mm
• Safe Working Load: 600kg
Operation Instructions:
Position forklift forks and drive into fork pockets, securing with thumbscrews
Prepare the trunnion arms and ratchet strap for the bin pickup
Engage the bin’s side trunnions and secure with locking pins and strap
Move to the designated discharge area and apply the handbrake
Use the endless loop chain to rotate the gearbox and empty the bin
Return the bin to horizontal, release the strap, and safely detach
Maintenance and Safety:
• Maintenance: Inspect weekly for weld integrity, fork pocket wear, and general component condition. Treat any surface rust using inhibitors and repaint where necessary. Product must be re-certified every six months from date of manufacture.
• Safety: Ensure all operators are trained and the forklift is rated for the load. Check that thumbscrews and ratchet straps are secure before use. Avoid shock loading or lifting bins while driving.
Why Choose the Invicta Forklift Wheelie Bin Lifter?
Time-Saving Solution – Increases efficiency during waste collection and disposal
Enhanced Safety – Includes secure twist screws and a ratchet strap
Robust Construction – Built for demanding industrial environments
Smooth Operation – Gearbox and chain system allow controlled bin emptying
Industry Compliance – Designed and tested for safe and proper forklift use
