Invicta Economy Adjustable Fork Mounted Hook (IAH-1.0E)
The Adjustable Fork Mounted Hook provides a quick and economical method of lifting and positioning unpalletised loads. Multiple lifting positions can be achieved by correctly positioning the attachment along the fork blade. This compact unit has been designed for when space is at a premium for storage, transportation and the actual lift.
Standard Features
• Completely adjustable along the fork blade (except taper)

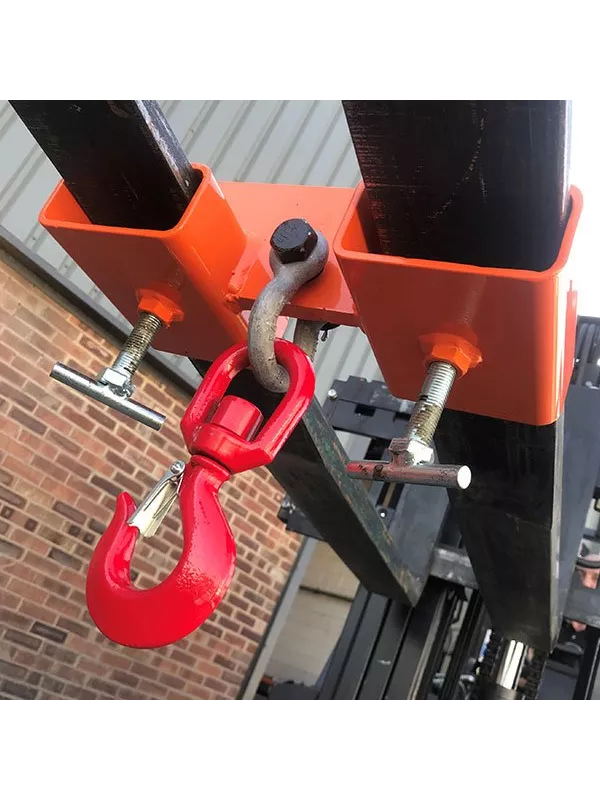

• Supplied complete with single swivel hook and bow shackle
• Maximum fork section 100 x 45mm at 220mm centres
• Zinc-plated twist screws for safe attachment to truck
• Painted bright orange for safety
Operation
Position the forks to the correct distance apart to locate them into fork pockets
Drive forks into fork pockets, ensuring thumb screws are suitably retracted

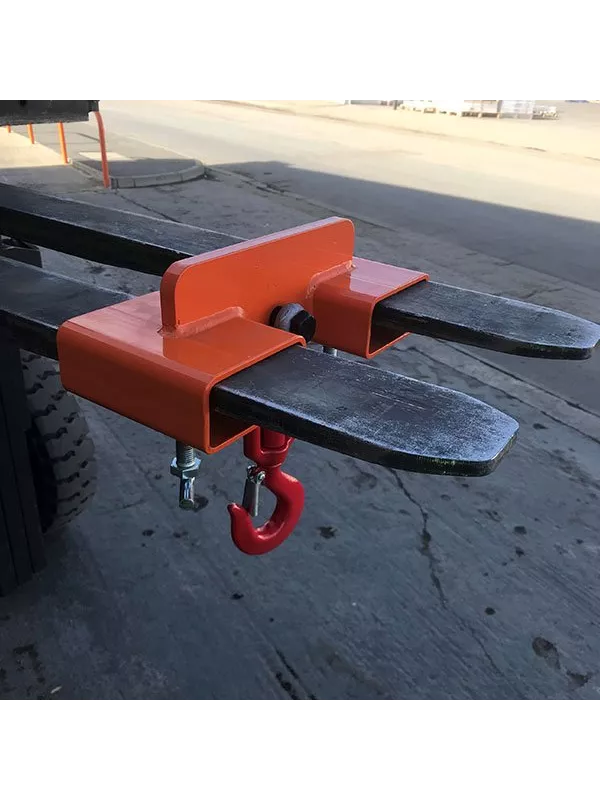

Locate the attachment to the required position along the blade of the fork
Tighten thumb screws at the desired position, ensuring they are adequately tightened
The attachment is now ready for use
Maintenance
The Adjustable Fork Mounted Hook should be inspected weekly for general condition with particular attention paid to:
A. All weld points
B. Wear and distortion of fork pockets and thumb screws
C. Any damaged/worn components
D. General condition of swivel hook, safety latch and shackle
Damage or failure must be reported and rectified immediately before re-using the attachment. Especially in critical areas, general surface rusting should be regularly treated with proprietary inhibitors, primers, and paint. This product is certified for twelve (12) months from the date of manufacture, after which it is the customer’s responsibility to have the product re-tested at an approved testing facility or inspected and logged in a register by a competent person as advised by the HSE.
Health & Safety
The department manager or section where the attachment is to be used must ensure the operators are fully conversant with the attachment, its operation, and maintenance and that the thumb screws are fully tightened
Ensure the truck and attachments can handle the intended load and contents
Ensure the shackle pin is adequately tightened before each use
Ensure the thumb screws are not tightened onto the taper of the blade
Do not drive into the fork pockets without retracting the thumb screws
Do not shock load the attachment under any circumstances
Always ensure only vertical lifts are made and not diagonal lifts when using the attachment
Ensure that the mast remains in the vertical position at all times
The safe working load must not be exceeded at its lifting point
Model Information
IAH-1.0E – Capacity: 1000kg – Weight: 15kg – Centre of Gravity: 125mm – LLC: N/A
IAH-2.0E – Capacity: 2000kg – Weight: 15kg – Centre of Gravity: 125mm – LLC: N/A
