Pallet Racking 3 Bay Kit
Pallet Racking 3 Bay Kit

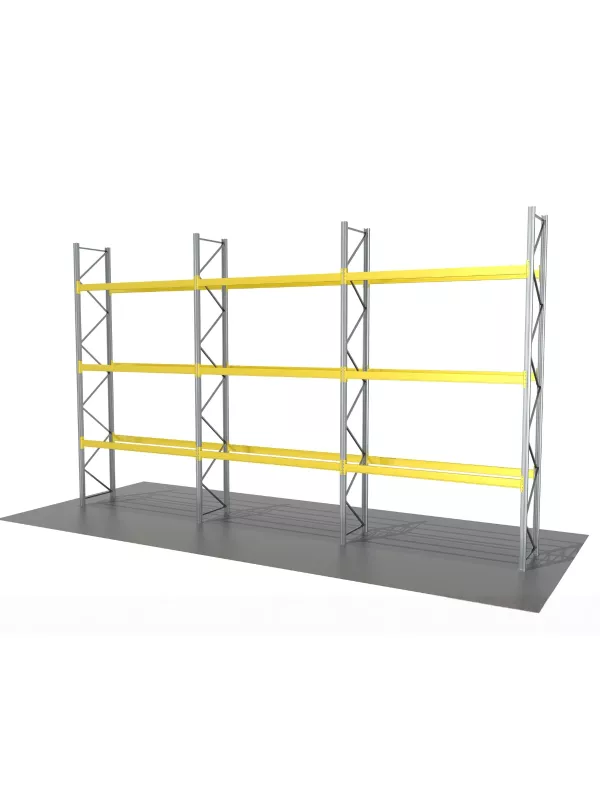

Pallet Racking 3 Bay Kit – Galvanised with Adjustable Beams (PSPR3)

The Pallet Racking 3 Bay Kit System delivers robust, high-capacity storage for warehouse and industrial use. With 2000 kg UDL per level and pre-assembled frames, these kits offer rapid installation, secure storage and seamless forklift access.
Pallet Racking 3 Bay Kit + PSPR3 + Delivery in 3-5 Working Days
Premier: Pallet Racking 3 Bay Kit
Height
Depth
From £1,124.63 (inc. VAT)£937.19 (ex. VAT)
This product earns between 937 and 1544 loyalty points.

Pallet Racking 3 Bay Kit + PSPR3 + Delivery in 3-5 Working Days

Modular 3 Bay Racking for Heavy-Duty Warehouse Storage


Designed for high-volume and high-demand environments, the Pallet Racking 3 Bay Kit System offers robust, forklift-accessible storage. Each kit includes three bays of racking with galvanised pre-built frames and adjustable beams, supporting up to 2000 kg UDL per level.


Whether storing palletised goods in distribution centres, workshops, or logistics hubs, this modular pallet racking system ensures safe, efficient and long-lasting performance.


Quick to Assemble with Included Hardware All pallet racking 3 bay kits come with everything needed for fast on-site assembly: pre-built frames, base plates, floor fixings, and locking pins. Once installed, the system allows immediate pallet access with no obstructions, streamlining warehouse operations.


Available Size Options

900 mm Depth – Suited for UK Pallets

  • 3000 mm (H) × 8420 mm (W overall) × 900 mm – 2 Levels
  • 4000 mm (H) × 8420 mm (W overall) × 900 mm – 2 Levels
  • 5000 mm (H) × 8420 mm (W overall) × 900 mm – 3 Levels

1100 mm Depth – Suited for Euro Pallets

  • 3000 mm (H) × 8420 mm (W overall) × 1100 mm – 2 Levels
  • 4000 mm (H) × 8420 mm (W overall) × 1100 mm – 2 Levels
  • 5000 mm (H) × 8420 mm (W overall) × 1100 mm – 3 Levels

Each 3 bay kit includes:

  • 3 × Clear entry bays (2700 mm each)
  • 4 × Upright frames (80 mm each)

Key Features & Specifications

  • Load Capacity: Up to 2000 kg UDL per level
  • Adjustable Beams: Beam levels can be repositioned in 50 mm increments
  • Frame Finish: Galvanised steel with high-visibility RAL2004 orange beams
  • Pre-Built Frames: Delivered ready to install
  • Included Hardware: Base plates, floor fixings, and locking pins
  • Pallet Access: Open-face design for quick picking and loading
  • Forklift Compatible: Suitable for use with all forklift types
  • Delivery:
    Fast UK delivery in 3–5 working days

Why Choose This Kit?

  • Three bay configuration maximises storage with efficient floor space use
  • Fast installation thanks to pre-assembled frames
  • Industrial-grade load rating up to 2000 kg per level
  • Adjustable shelving for varied pallet heights
  • Corrosion-resistant and highly visible beam design
  • Compatible with UK and Euro pallet sizes
  • Reliable support for expanding warehouse or workshop storage

Ideal Applications

  • Warehouse pallet storage
  • Industrial manufacturing environments
  • Logistics and distribution facilities
  • Workshop heavy item storage
