TRAFFIC-LINE Barrier Board System – Modular HDPE Barrier with Reflective Panels (361.2)
A high-visibility, wind-tested solution for temporary traffic and pedestrian management. The TRAFFIC-LINE Barrier Board System features recyclable materials and upgraded components for easy installation and long-term durability.
| SKU | Image | Product | 1+ Prices include VAT Prices exclude VAT | Quantity | |
|---|---|---|---|---|---|
| 361.29.439 |  | TRAFFIC-LINE Barrier Board System – Modular HDPE Barrier: Components: Base | £12.07 £10.06 | ||
| 361.23.859 |  | TRAFFIC-LINE Barrier Board System – Modular HDPE Barrier: Components: Upright | £17.24 £14.37 | ||
| 361.26.598 |  | TRAFFIC-LINE Barrier Board System – Modular HDPE Barrier: Components: Plank - 1250mm | £30.42 £25.35 | ||
| 361.28.283 |  | TRAFFIC-LINE Barrier Board System – Modular HDPE Barrier: Components: Plank - 2000mm | £41.47 £34.56 |

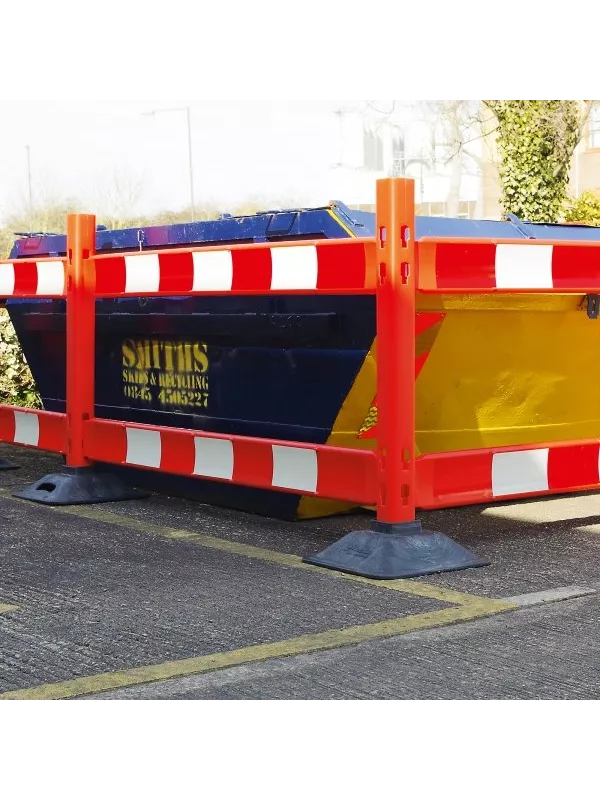

Versatile and Compliant Safety Barrier System for Temporary Site Control
The TRAFFIC-LINE Barrier Board System is a robust and modular solution for managing pedestrian and vehicle flow around temporary hazards such as road works, excavations, and building sites. Featuring improved HDPE barrier boards and upright posts for faster assembly and increased durability, the system ensures compliance with key industry standards.
Reflective red/white panels provide high visibility in low-light environments, while redesigned recycled bases can be doubled for added wind resistance. Fully compatible with existing systems, there’s no need to discard previously installed components.
Key Features

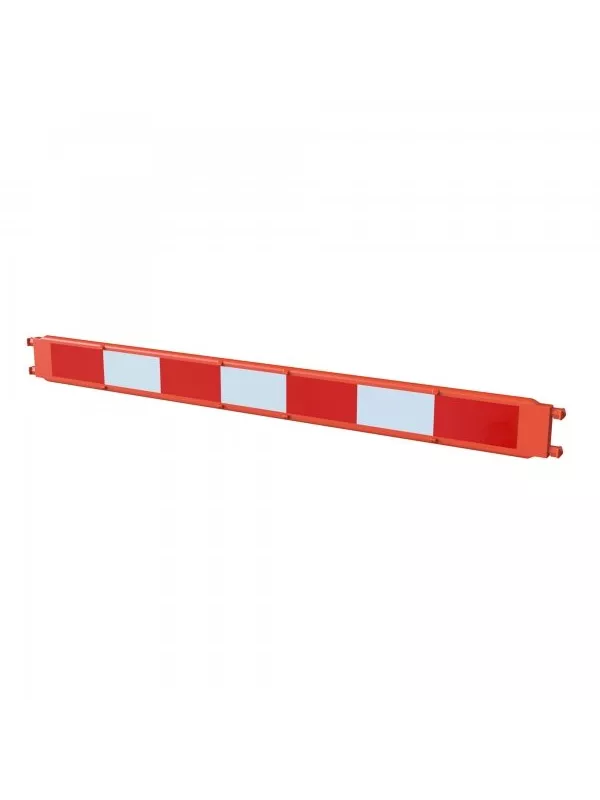

- Barrier Board Sizes: 1,250mm and 2,000mm
- Board Colour: Orange with red/white reflective panels

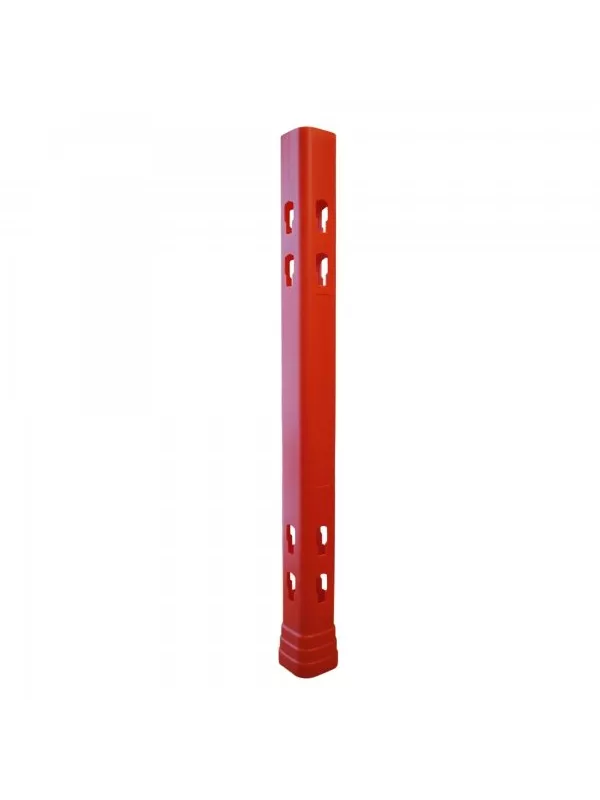

- Post Height: 1,170mm
- Post Colour: Orange
- Materials:

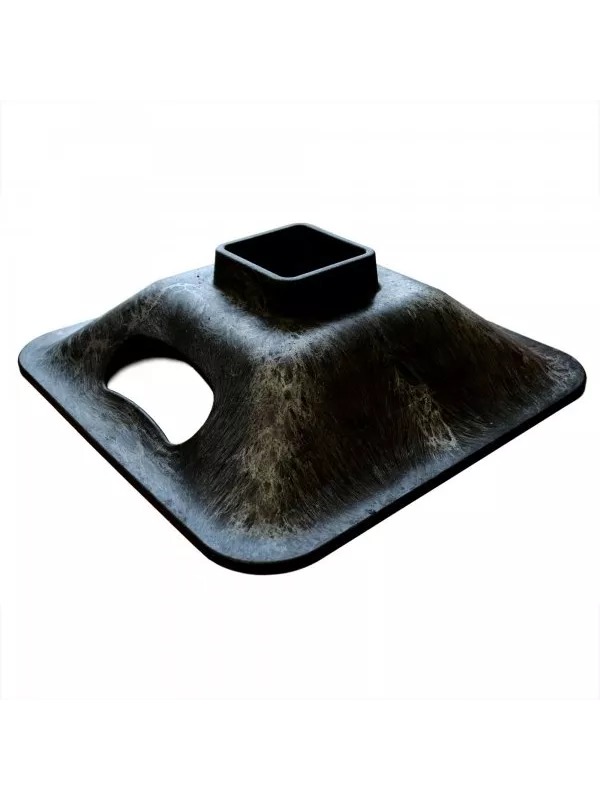

HDPE boards and posts; recycled base materials - Base Colour: Black
- Wind Resistance (MIRA tested):
- 0kg ballast: withstands up to 20.6 mph
- 10kg ballast: withstands up to 40.3 mph
- 25kg ballast: withstands up to 59.8 mph
- Boxed configuration: withstands up to 61.6 mph with 20kg ballast
- Conformance Standards:
- BSEN 8442
- BSEN 12899-1 (Reflectivity)
- Chapter 8 – The Traffic Signs Manual
- The Red Book 2013
- TSRGD (Traffic Signs Regulations & General Directions)
- System Compatibility: Fully compatible with existing TRAFFIC-LINE barrier systems
Applications
Suitable for:
- Road work demarcation
- Excavation and trench protection
- Construction zones
- Temporary pedestrian safety routes
- Utility and public works projects
