Black Bull Hd Impact Protection Railing System (P194.15.516)

The BLACK BULL Heavy Duty Impact Protection Railing System (194.15.516) is engineered for heavy duty protection of pedestrian walkways etc. Ideal for customised applications.

Black Bull HD Impact Protection Railing System + P194.15.516 + Delivery in  15-20 Working Days
Moravia: Black Bull HD Impact Protection Railing System
From £95.25 (inc. VAT)£79.38 (ex. VAT)RRP £101.40
SKUProduct1+

Prices include VAT

Prices exclude VAT

Quantity
194.16.094Black Bull HD Impact Protection Railing System: Options: End Post - 500 x 100 x 100mm - Interior Use £95.25 £79.38
194.18.997Black Bull HD Impact Protection Railing System: Options: Cross Bar - 1000mm - Interior Use £99.04 £82.53
194.18.550Black Bull HD Impact Protection Railing System: Options: Centre Post - 500 x 100 x 100mm - Interior Use £103.23 £86.03
194.13.760Black Bull HD Impact Protection Railing System: Options: 90° Angle Post - 500 x 100 x 100mm - Interior Use £104.73 £87.28
194.16.172Black Bull HD Impact Protection Railing System: Options: Cross Bar - 1200mm - Interior Use £106.63 £88.86
194.15.516Black Bull HD Impact Protection Railing System: Options: Bollard - 1000 x 100 x 100mm - Interior Use £118.91 £99.09
194.15.942Black Bull HD Impact Protection Railing System: Options: Cross Bar - 1500mm - Interior Use £130.69 £108.91
194.14.244Black Bull HD Impact Protection Railing System: Options: End Post - 1000 x 100 x 100mm - Interior Use £140.08 £116.73
194.15.765Black Bull HD Impact Protection Railing System: Options: End Post - 500 x 100 x 100mm - Exterior Use £145.17 £120.98
194.16.672Black Bull HD Impact Protection Railing System: Options: Cross Bar - 1000mm - Exterior Use £150.76 £125.63
194.18.142Black Bull HD Impact Protection Railing System: Options: Centre Post - 500 x 100 x 100mm - Exterior Use £157.45 £131.21
194.17.026Black Bull HD Impact Protection Railing System: Options: Centre Post - 1000 x 100 x 100mm - Interior Use £158.65 £132.21
194.15.032Black Bull HD Impact Protection Railing System: Options: 90° Angle Post - 500 x 100 x 100mm - Exterior Use £159.74 £133.12
194.14.863Black Bull HD Impact Protection Railing System: Options: Cross Bar - 1200mm - Exterior Use £162.04 £135.03
194.18.205Black Bull HD Impact Protection Railing System: Options: 90° Angle Post - 1000 x 100 x 100mm - Interior Use £164.44 £137.03
194.13.434Black Bull HD Impact Protection Railing System: Options: Cross Bar - 2000mm - Interior Use £168.93 £140.78
194.13.700Black Bull HD Impact Protection Railing System: Options: Bollard - 1000 x 100 x 100mm - Exterior Use £180.01 £150.01
194.16.449Black Bull HD Impact Protection Railing System: Options: Cross Bar - 1500mm - Exterior Use £199.88 £166.57
194.13.501Black Bull HD Impact Protection Railing System: Options: End Post - 1000 x 100 x 100mm - Exterior Use £214.26 £178.55
194.13.894Black Bull HD Impact Protection Railing System: Options: Centre Post - 1000 x 100 x 100mm - Exterior Use £243.41 £202.84
194.15.572Black Bull HD Impact Protection Railing System: Options: 90° Angle Post - 1000 x 100 x 100mm - Exterior Use £252.60 £210.50
194.13.826Black Bull HD Impact Protection Railing System: Options: Cross Bar - 2000mm - Exterior Use £259.28 £216.07
194.16.094
Black Bull HD Impact Protection Railing System Options: End Post - 500 x 100 x 100mm - Interior Use
1+ : £95.25
194.18.997
Black Bull HD Impact Protection Railing System Options: Cross Bar - 1000mm - Interior Use
1+ : £99.04
194.18.550
Black Bull HD Impact Protection Railing System Options: Centre Post - 500 x 100 x 100mm - Interior Use
1+ : £103.23
194.13.760
Black Bull HD Impact Protection Railing System Options: 90° Angle Post - 500 x 100 x 100mm - Interior Use
1+ : £104.73
194.16.172
Black Bull HD Impact Protection Railing System Options: Cross Bar - 1200mm - Interior Use
1+ : £106.63
194.15.516
Black Bull HD Impact Protection Railing System Options: Bollard - 1000 x 100 x 100mm - Interior Use
1+ : £118.91
194.15.942
Black Bull HD Impact Protection Railing System Options: Cross Bar - 1500mm - Interior Use
1+ : £130.69
194.14.244
Black Bull HD Impact Protection Railing System Options: End Post - 1000 x 100 x 100mm - Interior Use
1+ : £140.08
194.15.765
Black Bull HD Impact Protection Railing System Options: End Post - 500 x 100 x 100mm - Exterior Use
1+ : £145.17
194.16.672
Black Bull HD Impact Protection Railing System Options: Cross Bar - 1000mm - Exterior Use
1+ : £150.76
194.18.142
Black Bull HD Impact Protection Railing System Options: Centre Post - 500 x 100 x 100mm - Exterior Use
1+ : £157.45
194.17.026
Black Bull HD Impact Protection Railing System Options: Centre Post - 1000 x 100 x 100mm - Interior Use
1+ : £158.65
194.15.032
Black Bull HD Impact Protection Railing System Options: 90° Angle Post - 500 x 100 x 100mm - Exterior Use
1+ : £159.74
194.14.863
Black Bull HD Impact Protection Railing System Options: Cross Bar - 1200mm - Exterior Use
1+ : £162.04
194.18.205
Black Bull HD Impact Protection Railing System Options: 90° Angle Post - 1000 x 100 x 100mm - Interior Use
1+ : £164.44
194.13.434
Black Bull HD Impact Protection Railing System Options: Cross Bar - 2000mm - Interior Use
1+ : £168.93
194.13.700
Black Bull HD Impact Protection Railing System Options: Bollard - 1000 x 100 x 100mm - Exterior Use
1+ : £180.01
194.16.449
Black Bull HD Impact Protection Railing System Options: Cross Bar - 1500mm - Exterior Use
1+ : £199.88
194.13.501
Black Bull HD Impact Protection Railing System Options: End Post - 1000 x 100 x 100mm - Exterior Use
1+ : £214.26
194.13.894
Black Bull HD Impact Protection Railing System Options: Centre Post - 1000 x 100 x 100mm - Exterior Use
1+ : £243.41
194.15.572
Black Bull HD Impact Protection Railing System Options: 90° Angle Post - 1000 x 100 x 100mm - Exterior Use
1+ : £252.60
194.13.826
Black Bull HD Impact Protection Railing System Options: Cross Bar - 2000mm - Exterior Use
1+ : £259.28
Black Bull HD Impact Protection Railing System + P194.15.516 + Delivery in  15-20 Working Days

Black Bull HD - High Impact Protection Railing System


The BLACK BULL HD Impact Protection Railing System is engineered for heavy duty protection of pedestrian walkways etc.


  • Provides protection for pedestrians from vehicular traffic.
  • Superior build quality and strength.
  • Modular design for quick and easy installation.

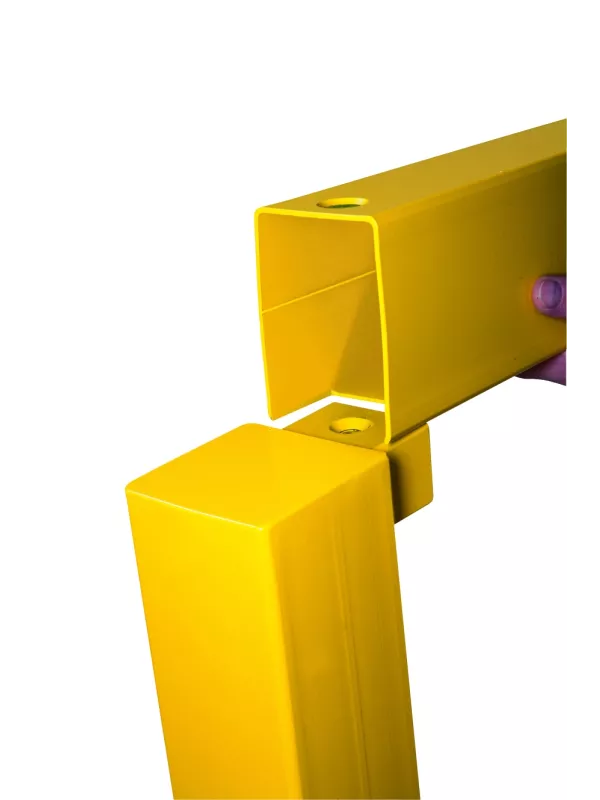

  • Counter sunk bolts secure rails to posts.
  • Ideal for customised applications.
  • Can be easily extended at any stage.
  • Damaged sections are easily replaced.
  • Easily secured with bolts (supplied separately).

Applications:


Segregate traffic lanes from pedestrians (forklift lanes/pedestrian paths), ideal for protecting work areas, equipment, machinery and plant.


Specifications:


Posts


  • Size: 100 x 100mm square
  • Height: 500mm and 1,000mm
  • Base plate: 200 x200 x 10mm thick (drilled 4 fixing holes)

Lateral rails


  • Size: 120mm x 80mm x 4mm wall
  • Lengths: 1,000, 1,200, 1,500, or 2,000mm

Matching bollards


  • Size: 1,000mmH x 100 x 100mm Square
  • Base plate: 200 x200 x 10mm thick (drilled 4 fixing holes)

Finishes:


  • Interior: Powder coated yellow
  • Exterior: Hot Dip Galv., powder coated yellow

Bollards & Posts:


Description
Overall Size
H x W x Dmm
Weight
kg
Interior Use
Exterior Use
Bollard
1000 x 100 x 100
16
194.15.516
194.13.700
End Post
500 x 100 x 100
10
194.16.094
194.15.765
Centre Post
500 x 100 x 100
10.5
194.18.550
194.18.142
90° Angle Post
500 x 100 x 100
10.5
194.13.760
194.15.032
End Post
1000 x 100 x 100
17
194.14.244
194.13.501
Centre Post
1000 x 100 x 100
18
194.17.026
194.13.894
90° Angle Post
1000 x 100 x 100
18
194.18.205
194.15.572

Cross Bars

Cross Bar mm
Weight
kg
Interior Use
Exterior Use
1000
9.5
194.18.997
194.16.672
1200
11.5
194.16.172
194.14.863
1500
14
194.15.942
194.16.449
2000
18
194.13.434
194.13.826
