BLACK BULL FLEX+ S-Line Impact Protection Railing with Underrun Guard (205.17.9507)
The BLACK BULL FLEX+ S-Line Impact Protection Railing with Underrun Guard provides two-level protection for pedestrian walkways, work areas and internal traffic routes. The upper crossbars create a highly visible separation between people and workplace vehicles, while the integrated low-level guard helps stop forklift forks, wheels and other low-profile hazards from entering pedestrian areas. Manufactured from highly elastic polypropylene, the system absorbs impact energy through controlled deformation and returns towards its original shape. It is certified in accordance with PAS 13:2017 and tested to approximately 7,000 joules. Starter, centre extension and corner extension sets are available.
| SKU | Image | Product | 1+ Prices include VAT Prices exclude VAT | Quantity | |
|---|---|---|---|---|---|
| 205.17.9508 |  | BLACK BULL FLEX+ S-Line Impact Protection Railing with Underrun Guard: Options: Extension Centre Set | £862.42 £718.68 | ||
| 205.17.9509 |  | BLACK BULL FLEX+ S-Line Impact Protection Railing with Underrun Guard: Options: Extension Corner Set | £862.42 £718.68 | ||
| 205.17.9507 |  | BLACK BULL FLEX+ S-Line Impact Protection Railing with Underrun Guard: Options: Starter Set | £1,147.96 £956.63 |
BLACK BULL FLEX+ S-Line Impact Protection Railing with Underrun Guard
The BLACK BULL FLEX+ S-Line Impact Protection Railing with Underrun Guard provides comprehensive separation between pedestrian areas, work zones and internal vehicle routes.

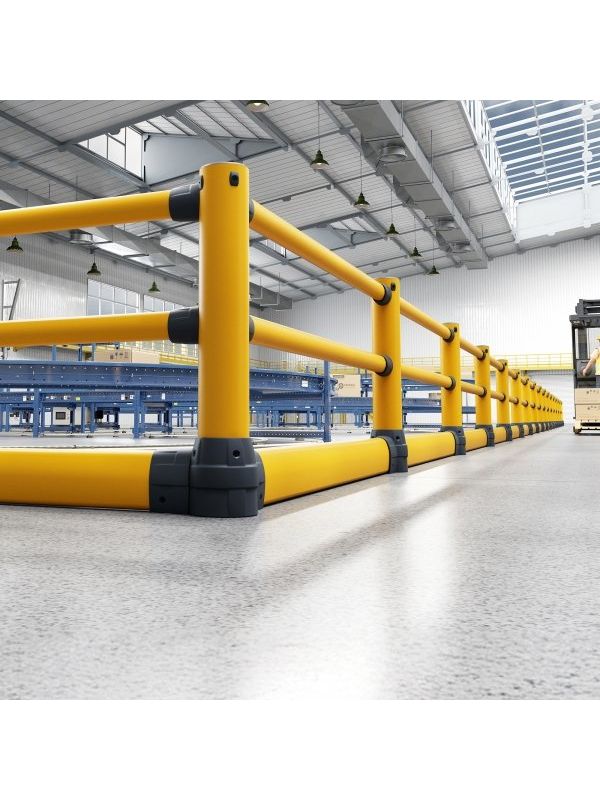

The system combines a highly visible pedestrian guardrail with an integrated low-level underrun guard. This creates a continuous protective line from floor level to standing height, helping prevent vehicles, forklift forks and wheels from entering designated pedestrian areas.
Designed for warehouses, logistics centres and production facilities, the modular system is suitable for walkways, workstations, picking areas, assembly zones, crossing points and other locations where people and workplace vehicles operate close together.
Two Levels of Workplace Protection
The upper S-Line crossbars create a clear physical boundary between pedestrians and internal traffic. Their high-visibility design helps employees and visitors identify designated walkways, traffic lanes and restricted areas.
The integrated underrun guard provides additional protection close to the floor. It helps stop forklift forks, pallet trucks, tyres and other low-level vehicle components from passing beneath the main railing and entering pedestrian zones.
Flexible Impact Absorption
Unlike rigid steel barriers, the FLEX+ system absorbs impact energy through controlled elastic deformation. During an impact, the polypropylene components flex to cushion the force and distribute it across the protection system.
Once the impact force is removed, the system returns towards its original shape. This helps retain the protective function while reducing the risk of permanent deformation, damage and operational downtime.
PAS 13 Certified Impact Protection
The BLACK BULL FLEX+ S-Line with Underrun Guard is certified in accordance with PAS 13:2017 and tested to an impact load of approximately 7,000 joules.
The flexible design helps distribute impact forces across the crossbars, posts, connections and anchors rather than concentrating the load at one point. This reduces stress on individual components, fixings and the surrounding floor.

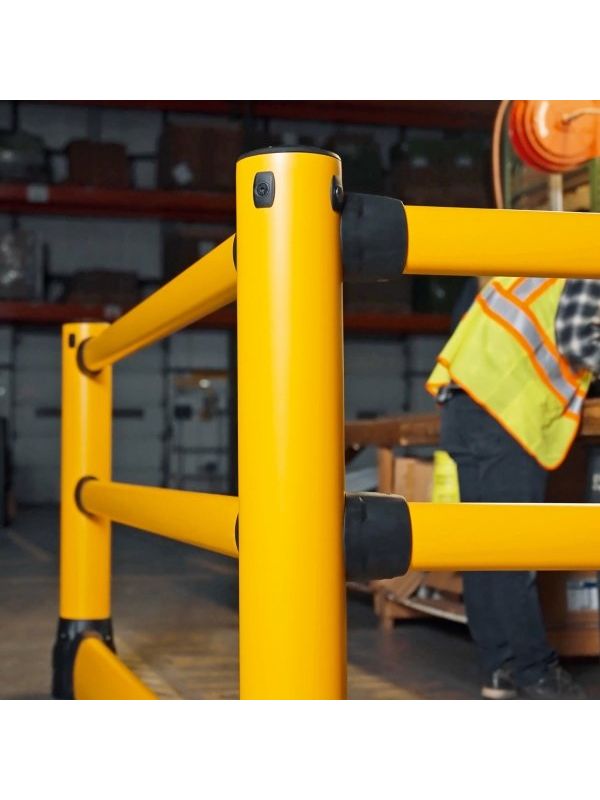

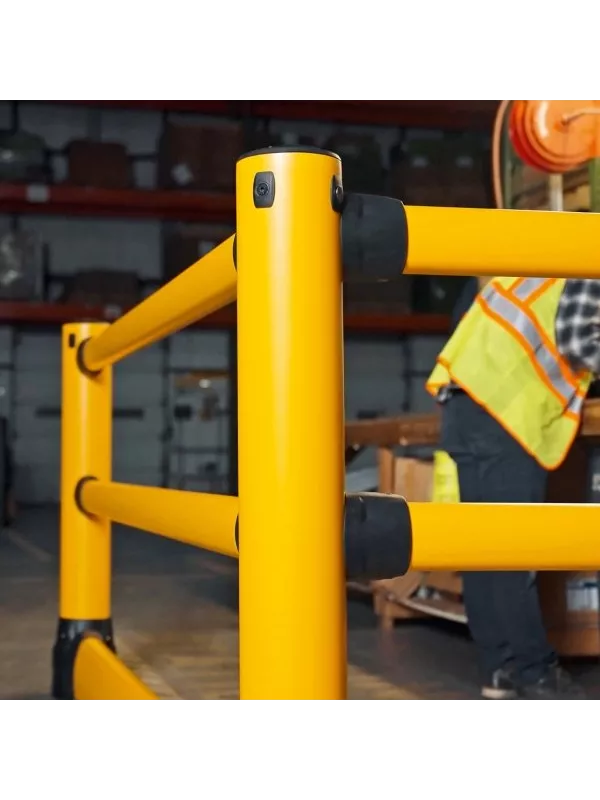

Flexible Crossbars and Posts
The polymer crossbars form a continuous and clearly visible protective line. They absorb energy during an impact and help prevent workplace vehicles from entering pedestrian and operational areas.
The supporting posts receive and distribute the transmitted forces throughout the system, helping maintain stability along the full barrier run.
Integrated Low-Level Underrun Guard
The lower crossbar is positioned close to floor level to provide additional protection against forklift forks, pallet trucks, wheels and low-level collisions.
This is particularly important in mixed-traffic environments where a conventional guardrail may provide pedestrian protection at body height but leave an exposed gap beneath the main barrier.
FlexLink Connection Technology
FlexLink connection technology distributes impact forces evenly across adjoining barrier sections. This helps avoid concentrated point loads and reduces pressure on individual posts, anchors and floor fixings.
The connection system also supports a modular layout, allowing longer straight runs and corner configurations to be created as required.

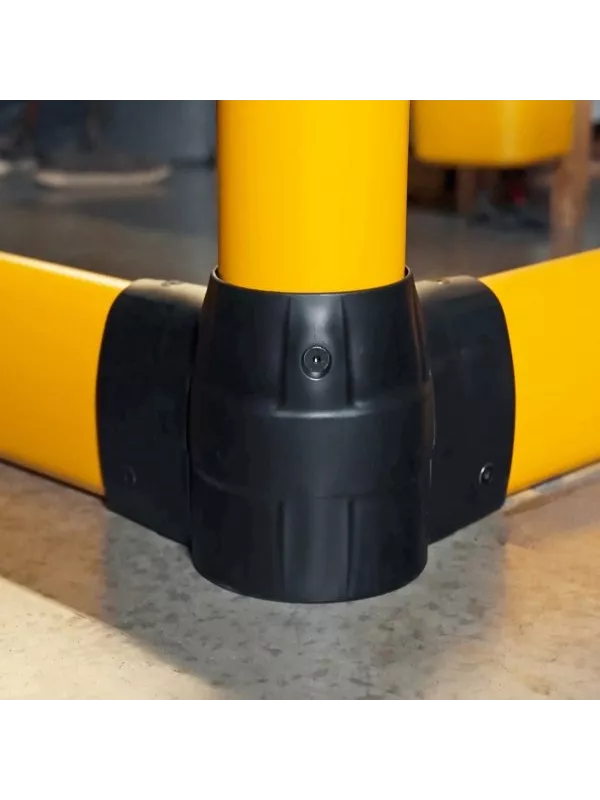

Impact-Resistant FLEX+ Bases
Each FLEX+ Base connects the post to its ground anchor and incorporates an impact-resistant outer shell. This protects the internal screw connection from direct contact and everyday workplace damage.
The shaped base also helps reduce the risk of damage to the tyres and wheels of forklift trucks, pallet trucks and other industrial vehicles.
Force-Absorbing Ground Anchors
The FLEX+ Base ground anchor combines secure concrete anchoring with integrated rubber dampers. These dampers help absorb and distribute impact forces before they reach the fixing connection and surrounding floor substrate.
This design creates a stable bolt-down installation while reducing the loads placed on the anchors during repeated impacts.
Designed for Repeated Contact
The highly elastic polypropylene construction is designed to remain functional following repeated knocks and minor collisions.
Its ability to flex and recover can help reduce component replacement, repair costs and disruption in busy warehouse and production environments.

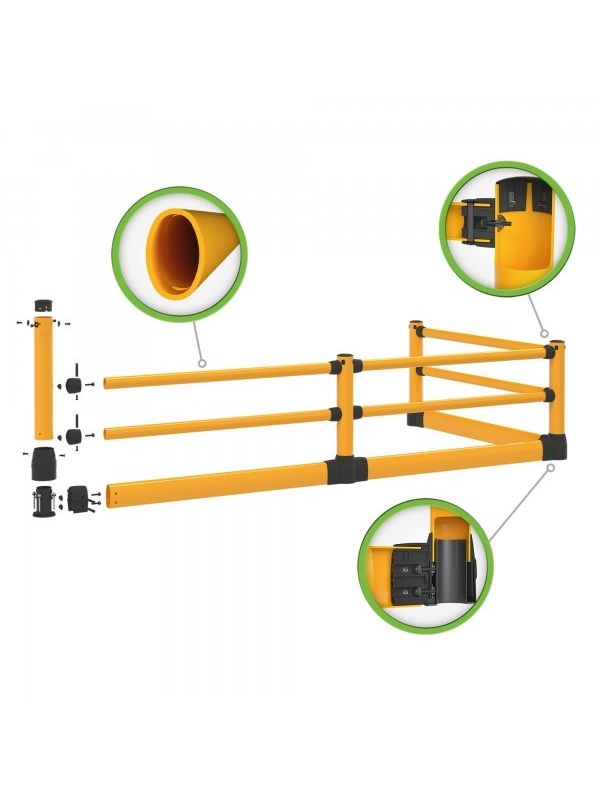

Modular Railing System
The BLACK BULL FLEX+ S-Line with Underrun Guard is available in three modular configurations. The Starter Set creates the beginning of a protective run, while the Centre and Corner Extension Sets allow the system to be expanded.

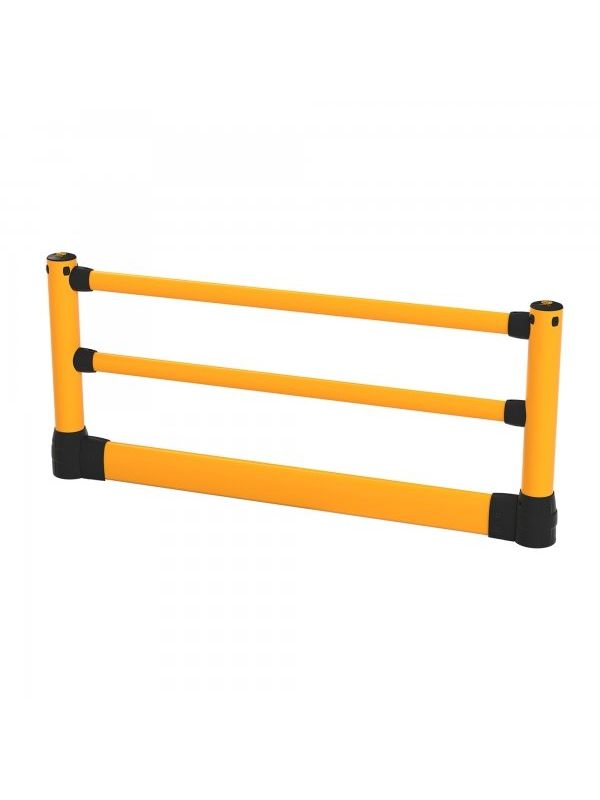

Starter Set

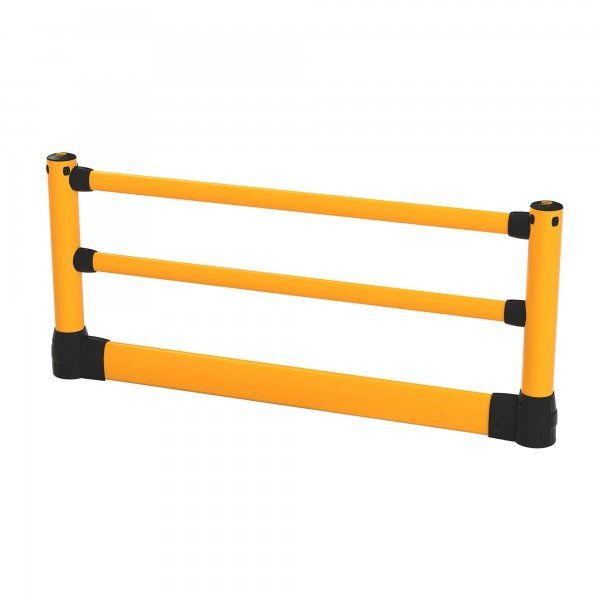

The Starter Set provides the components required to create an individual straight barrier section or begin a longer modular installation.
- Overall height: 1170mm
- Overall run length: 2642mm
- Product weight: 43.42kg
- Manufacturer article number: 205.17.9507

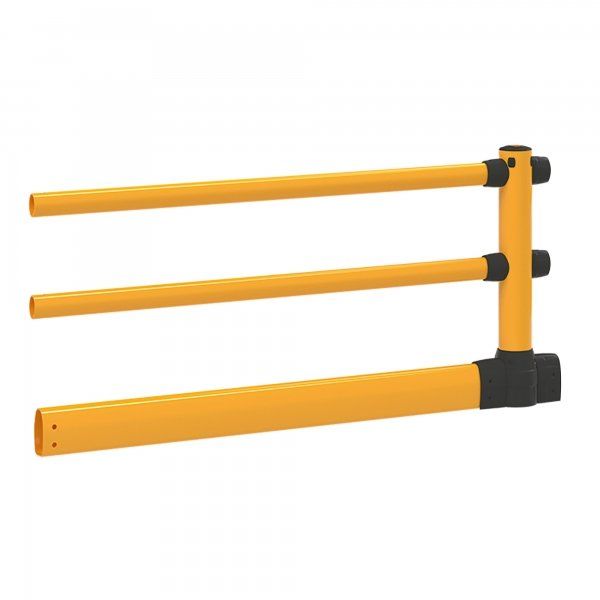

Extension Centre Set
The Centre Extension Set extends an existing protective railing in a straight direction.
- Overall height: 1170mm
- Overall run length: 2438mm
- Product weight: 33.19kg
- Manufacturer article number: 205.17.9508

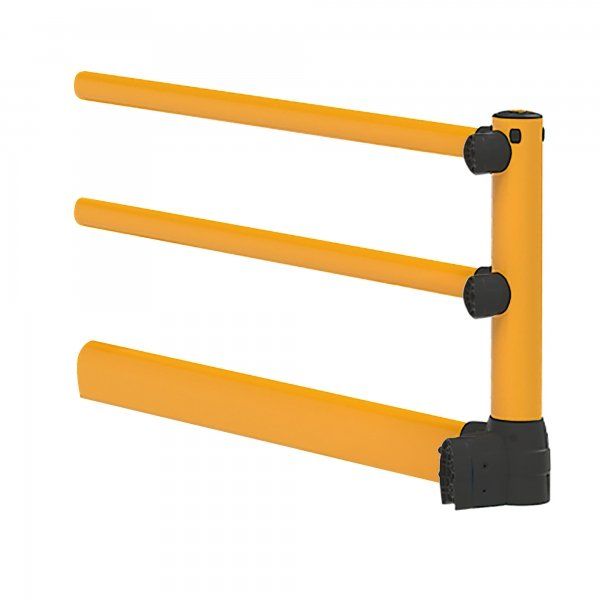

Extension Corner Set
The Corner Extension Set allows the protective railing to continue around a corner or protect adjoining sides of an area.
- Overall height: 1170mm
- Overall run length: 2438mm
- Product weight: 33.19kg
- Manufacturer article number: 205.17.9509
Key Features
- Flexible pedestrian impact protection railing
- Integrated low-level underrun guard
- Creates two levels of protection
- Helps separate pedestrians from workplace vehicles
- Helps prevent forklift forks entering pedestrian zones
- Certified in accordance with PAS 13:2017
- Tested to approximately 7,000 joules
- Absorbs energy through controlled elastic deformation
- Highly elastic polypropylene construction
- High-visibility continuous protective line
- FlexLink force-distribution connection system
- Impact-resistant protective post bases
- Force-absorbing rubber dampers within the ground anchors
- Designed to withstand repeated minor impacts
- Modular and extendable configuration
- Suitable for straight and corner layouts
- Secure bolt-down installation
- Suitable for indoor industrial environments
- Durable and low-maintenance design
Typical Applications
- Pedestrian walkway segregation
- Warehouse traffic routes
- Forklift truck operating areas
- Picking and packing zones
- Assembly and production workstations
- Pedestrian crossing points
- Loading and transfer areas
- Logistics and distribution centres
- Areas with mixed pedestrian and vehicle traffic
- Locations with low-level fork or wheel hazards
Product Specifications
- Product type: Flexible impact protection railing with underrun guard
- Range: BLACK BULL FLEX+
- System: S-Line
- Material: Polypropylene
- Application: Indoor use
- Installation method: Bolt down
- Overall height: 1170mm
- Approximate test load: 7,000 joules
- Certification: PAS 13:2017
- Available configurations: Starter, centre extension and corner extension

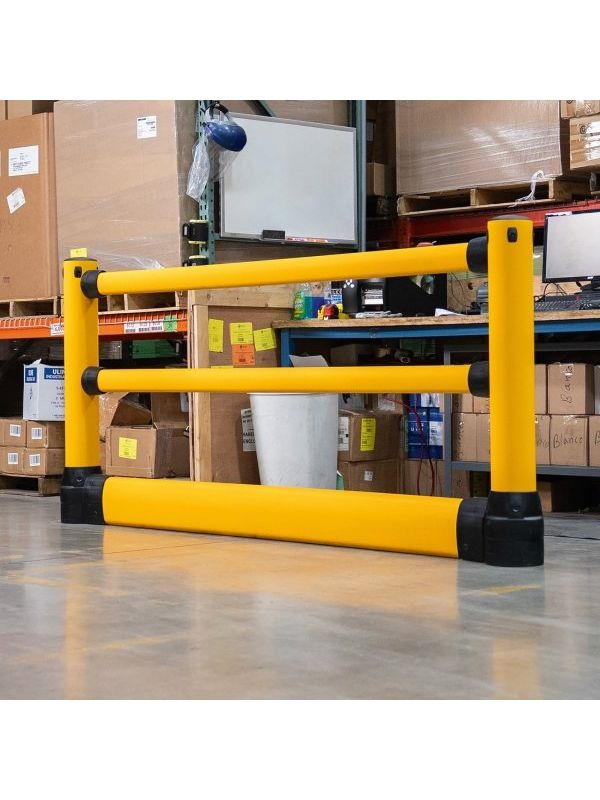

Clear Pedestrian and Vehicle Segregation
The BLACK BULL FLEX+ S-Line with Underrun Guard helps create clearly structured pedestrian and vehicle zones throughout busy workplaces.
The upper railing provides a visible physical boundary, while the low-level guard closes the exposed area near the floor. This makes it particularly suitable for environments where forklift forks, pallet trucks and vehicle wheels create additional hazards.
Flexible Protection for Demanding Workplaces
The modular design allows the railing to be adapted or extended as workplace layouts change. Straight runs and corner sections can be combined to protect walkways, workstations and operational areas.
With its flexible construction, PAS 13 certification and approximately 7,000-joule test load, the system provides dependable pedestrian and low-level impact protection for demanding indoor environments.
