BLACK BULL FLEX+ L-Line Flexible Impact Protection Railing (205.17.94)
The BLACK BULL FLEX+ L-Line Impact Protection Railing provides robust, highly visible separation between vehicle routes, work areas, machinery, racking and building structures. Designed for protection at vehicle height, the flexible polypropylene system absorbs impact energy through controlled elastic deformation and distributes forces across the entire protective line. It then returns towards its original shape, helping retain its protective function after contact. Certified in accordance with PAS 13:2017 and tested to approximately 7,000 joules, the modular bolt-down system is available as a Starter Set, Centre Extension Set or Corner Extension Set.
| SKU | Image | Product | 1+ Prices include VAT Prices exclude VAT | Quantity | |
|---|---|---|---|---|---|
| 205.17.9489 |  | BLACK BULL FLEX+ L-Line Flexible Impact Protection Railing: Options: Extension Centre Set | £845.35 £704.46 | ||
| 205.17.9490 |  | BLACK BULL FLEX+ L-Line Flexible Impact Protection Railing: Options: Extension Corner Set | £845.35 £704.46 | ||
| 205.17.9488 |  | BLACK BULL FLEX+ L-Line Flexible Impact Protection Railing: Options: Starter Set | £1,130.99 £942.49 |
BLACK BULL FLEX+ L-Line Impact Protection Railing
The BLACK BULL FLEX+ L-Line Impact Protection Railing provides strong, clearly visible separation between internal traffic routes, work areas, machinery, pallet racking and building structures.
Designed for protection at vehicle height, the L-Line is ideal for warehouse, logistics and production environments where a substantial physical barrier is required but there is no significant low-level underrun hazard.
Unlike a rigid steel guardrail, the FLEX+ system absorbs impact energy through controlled elastic deformation. It distributes the resulting forces across the entire protective line before returning towards its original shape.

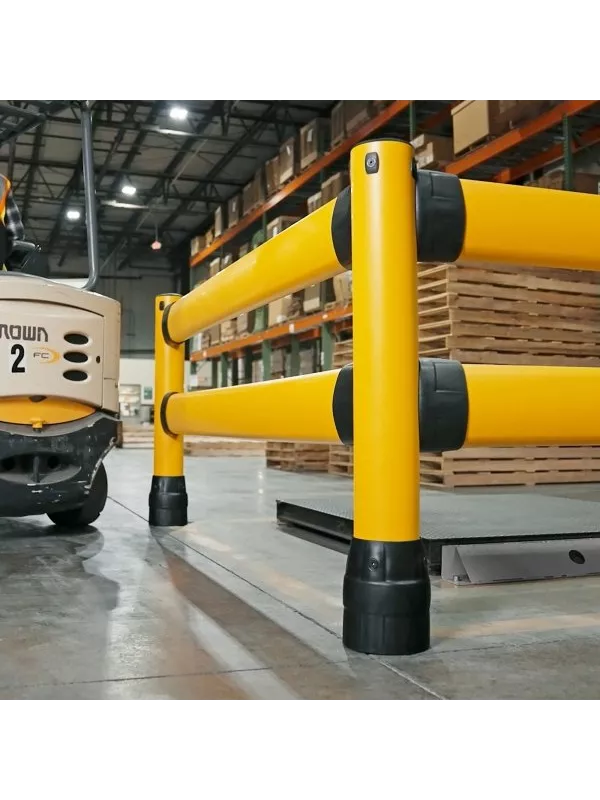

Vehicle-Height Impact Protection

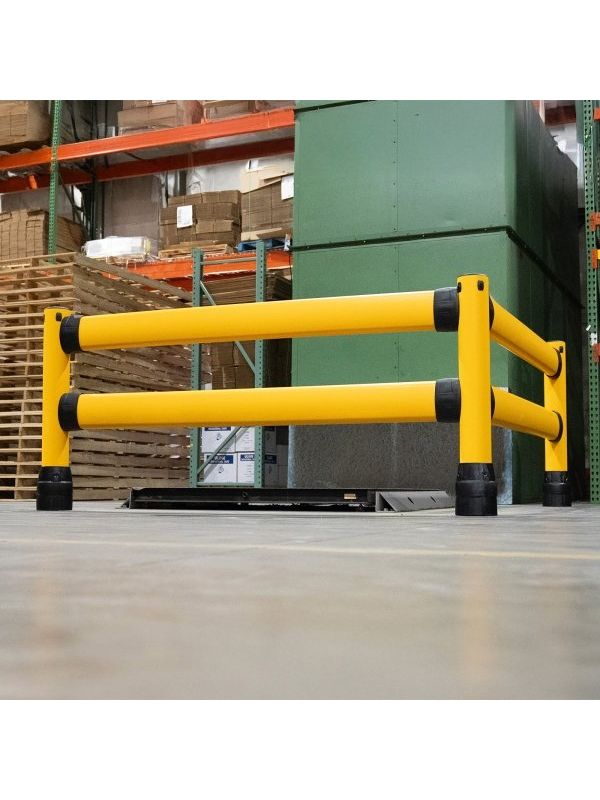

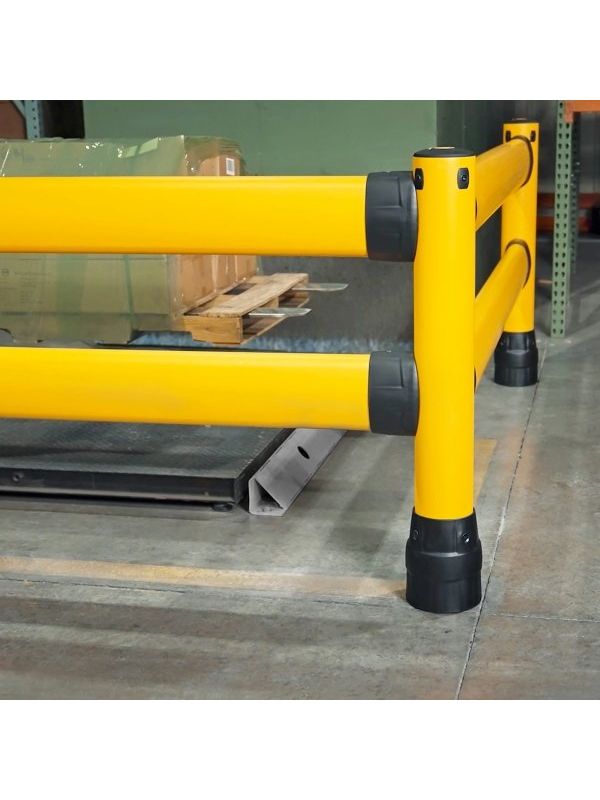

The L-Line creates a continuous protective boundary along vehicle routes, racking aisles, workstations, machine areas and transfer zones.
Its substantial crossbars are positioned to provide protection at vehicle height, helping prevent workplace vehicles from striking machinery, racking, building structures or occupied work areas.
Where protection is also required against forklift forks and other low-level hazards, a railing with an integrated underrun guard may be more suitable.
PAS 13 Certified Performance
The BLACK BULL FLEX+ L-Line is certified in accordance with PAS 13:2017 and tested to an impact load of approximately 7,000 joules.
The system is designed to absorb and distribute dynamic forces rather than transferring the full load into a single post, floor fixing or section of the protected structure.
Flexible Crossbars and Supporting Posts
The polypropylene crossbars form a continuous and highly visible protective line. During an impact, they flex to cushion the force, absorb energy and help reduce damage to vehicles and nearby infrastructure.
The supporting posts receive the transmitted forces and maintain stability throughout the barrier run. This wide-area force distribution helps reduce localised loading and supports reliable protection across the entire installation.

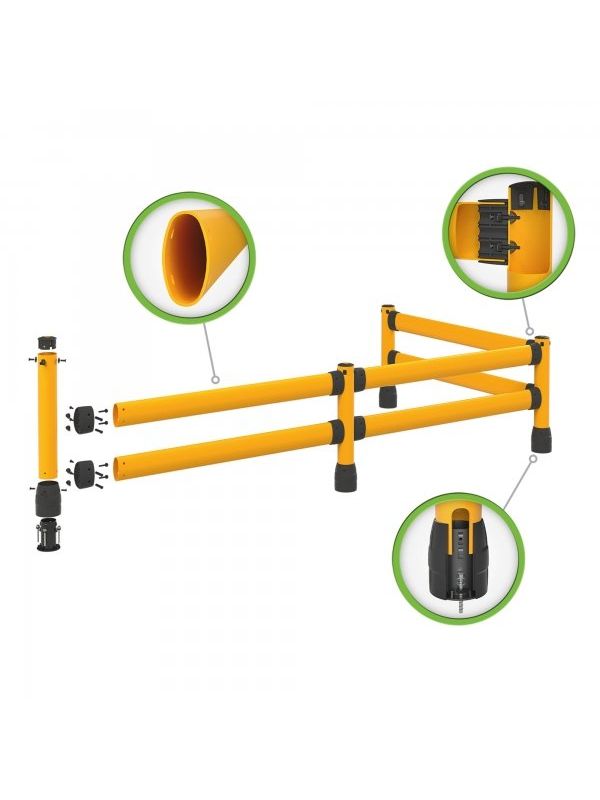

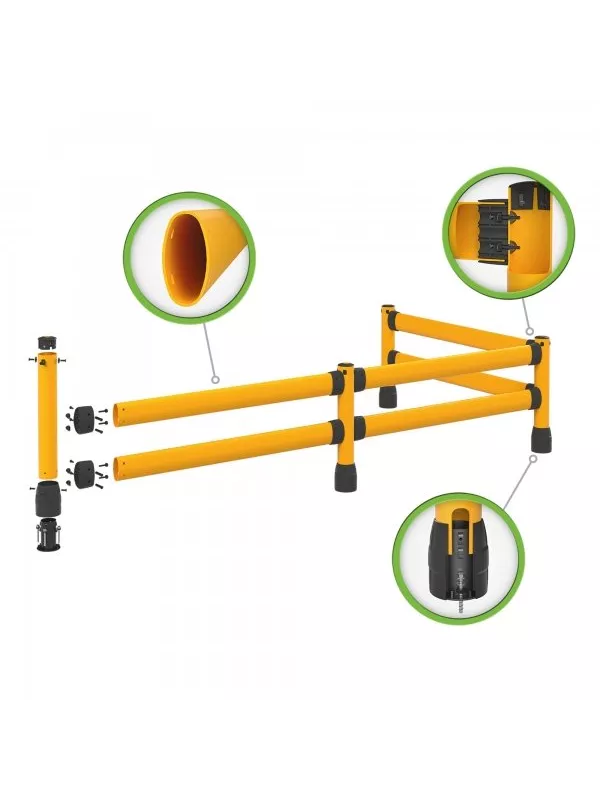

FlexLink Connection Technology
FlexLink connection technology distributes impact forces evenly between adjoining crossbars, posts and barrier sections.
This helps relieve pressure on individual anchor points and the surrounding floor. It can also reduce the likelihood of loose posts, damaged fixings and localised substrate failure following repeated impacts.

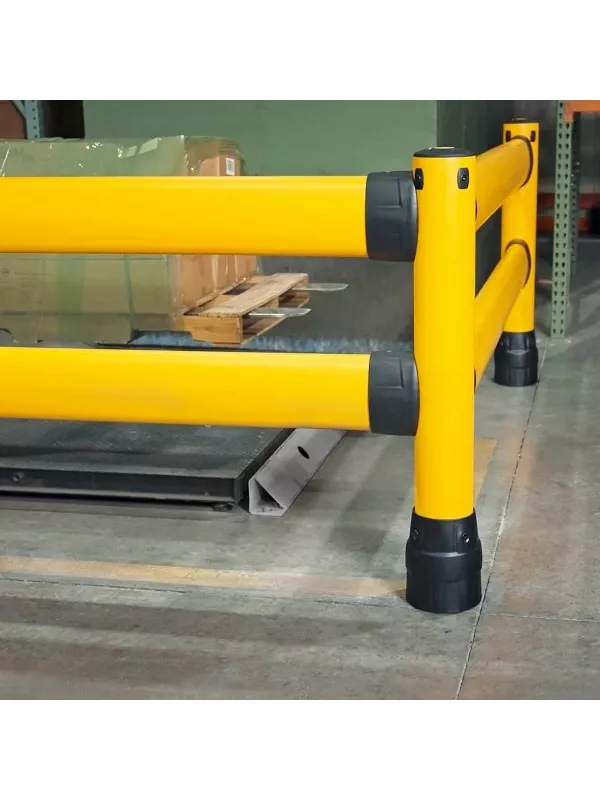

Impact-Resistant FLEX+ Bases
Each FLEX+ Base connects the railing post to the ground anchor and incorporates an impact-resistant outer shell.
The base protects the internal screw connection from direct contact and workplace damage. Its shaped design also helps reduce the risk of damaging the tyres and wheels of forklift trucks, pallet trucks and other industrial vehicles.
Force-Absorbing Ground Anchors
The FLEX+ ground anchor combines secure concrete anchoring with integrated force-absorbing rubber dampers.
These dampers help reduce the load transferred to the screw connection and floor substrate during an impact. This supports a stable bolt-down installation while allowing the system to accommodate repeated contact more effectively.
Designed for Repeated Impacts
The highly elastic polypropylene construction is designed to remain functional following repeated knocks and minor collisions.
Rather than remaining permanently deformed after contact, the FLEX+ system returns towards its original shape. This can help reduce component replacement, repair costs and operational disruption.
Modular Impact Protection System
The BLACK BULL FLEX+ L-Line is available in three modular configurations. The Starter Set creates an individual protective section or the beginning of a longer run, while the Centre and Corner Extension Sets allow the installation to be expanded.

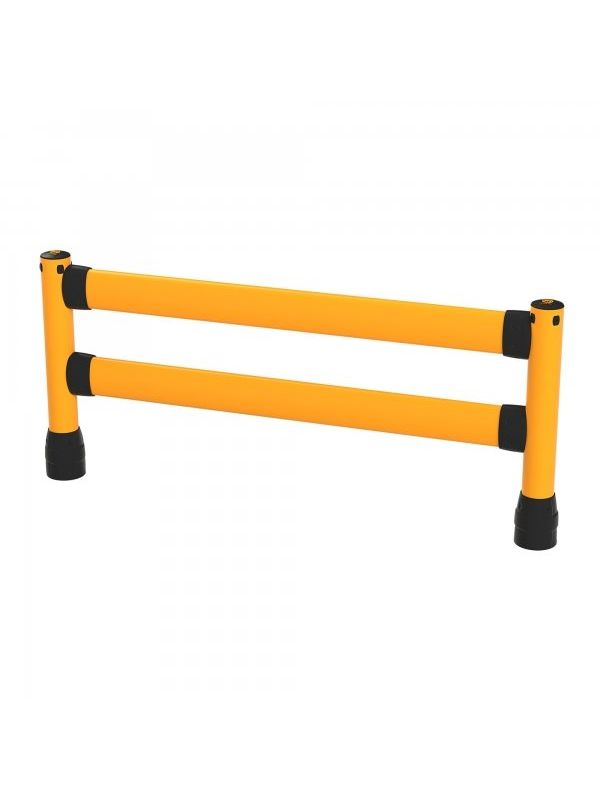

Starter Set

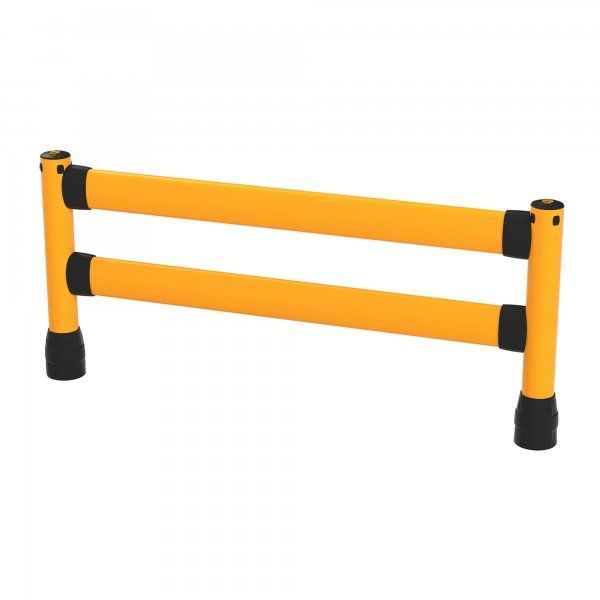

The Starter Set provides the components required to create a standalone straight section or begin a longer modular protection line.
- Overall height: 1170mm
- Overall run length: 2642mm
- Product weight: 54.36kg
- Manufacturer article number: 205.17.9488

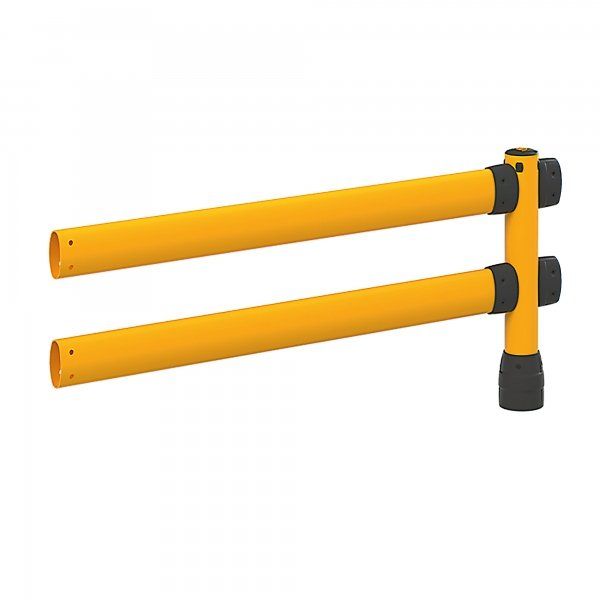

Extension Centre Set
The Centre Extension Set extends an existing L-Line installation in a straight direction.
- Overall height: 1170mm
- Overall run length: 2438mm
- Product weight: 44.14kg
- Manufacturer article number: 205.17.9489

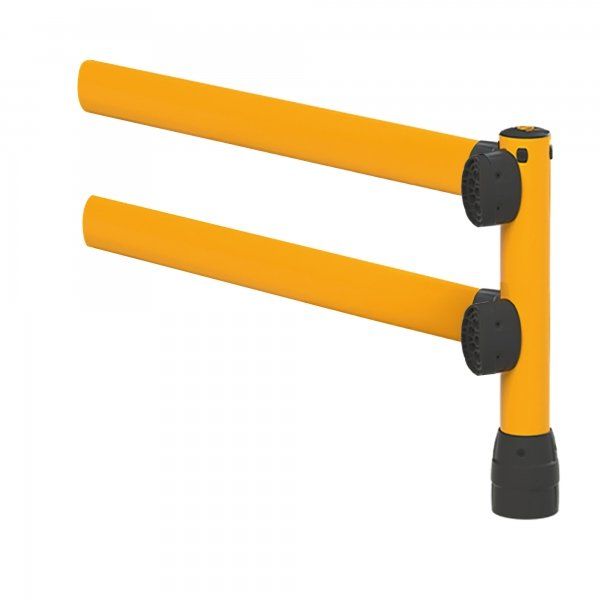

Extension Corner Set
The Corner Extension Set allows the railing to continue around a corner or protect adjoining sides of an operational area.
- Overall height: 1170mm
- Overall run length: 2438mm
- Product weight: 44.14kg
- Manufacturer article number: 205.17.9490
Key Features
- Flexible vehicle-height impact protection railing
- Creates clear separation between traffic and work areas
- Protects machinery, racking and building structures
- Certified in accordance with PAS 13:2017
- Tested to approximately 7,000 joules
- Absorbs energy through controlled elastic deformation
- Distributes impact forces across the protective line
- Highly elastic polypropylene construction
- Continuous high-visibility crossbars
- FlexLink force-distribution connection technology
- Impact-resistant protective post bases
- Force-absorbing rubber dampers within the anchors
- Designed to withstand repeated minor impacts
- Modular and extendable configuration
- Suitable for straight and corner layouts
- Secure bolt-down installation
- Suitable for indoor industrial environments
- Durable and low-maintenance design
Typical Applications
- Warehouse vehicle routes
- Pallet racking aisles
- Machinery and production areas
- Workstations beside forklift routes
- Loading and transfer zones
- Building walls and structures
- Conveyor and processing equipment
- Logistics and distribution centres
- Areas with high vehicle traffic
- Locations requiring vehicle-height protection
Product Specifications
- Product type: Flexible impact protection railing
- Range: BLACK BULL FLEX+
- System: L-Line
- Material: Polypropylene
- Application: Indoor use
- Installation method: Bolt down
- Overall height: 1170mm
- Approximate test load: 7,000 joules
- Certification: PAS 13:2017
- Available configurations: Starter, centre extension and corner extension
Clear Separation of Traffic and Work Areas
The BLACK BULL FLEX+ L-Line helps create clear, continuous protection around operational areas where workplace vehicles travel close to people, equipment and structures.
Its high-visibility design improves route definition, while the strong crossbars provide effective physical protection at vehicle height.
Flexible Protection for Demanding Workplaces
The modular system can be adapted to suit straight runs, corners and larger industrial layouts. Additional extension sections can be added as operational requirements change.
With PAS 13 certification, an approximate 7,000-joule test load and elastic impact absorption, the L-Line provides durable protection for busy indoor industrial environments.
