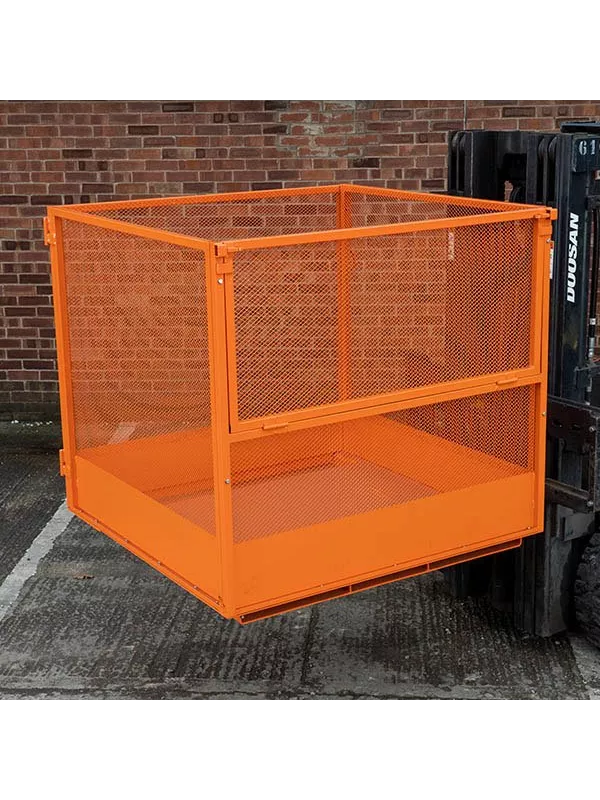

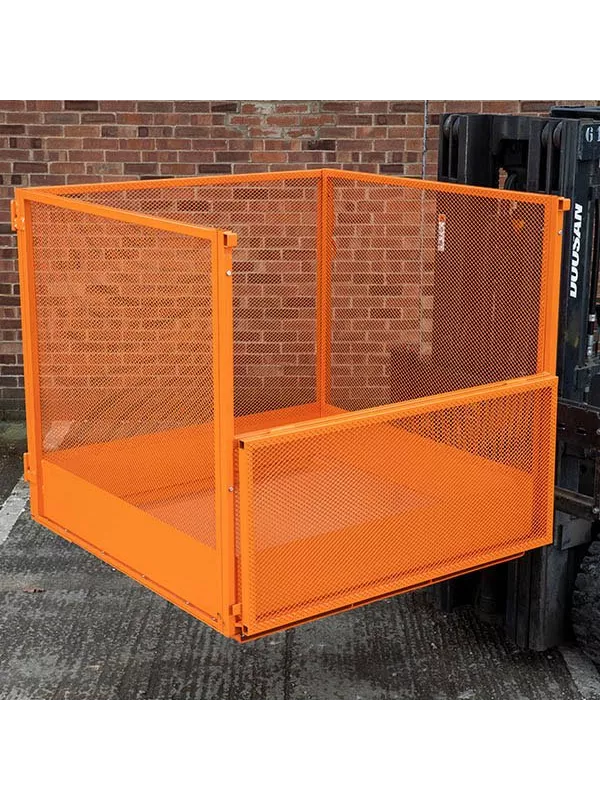

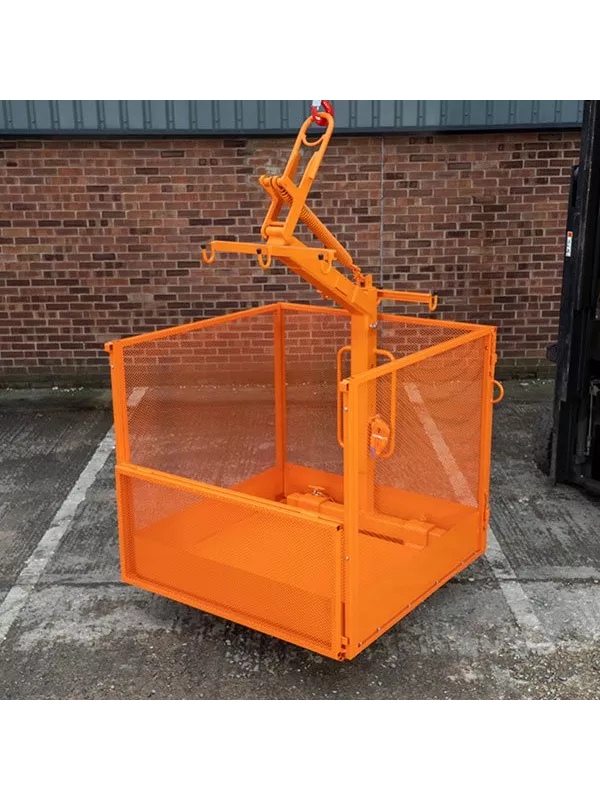

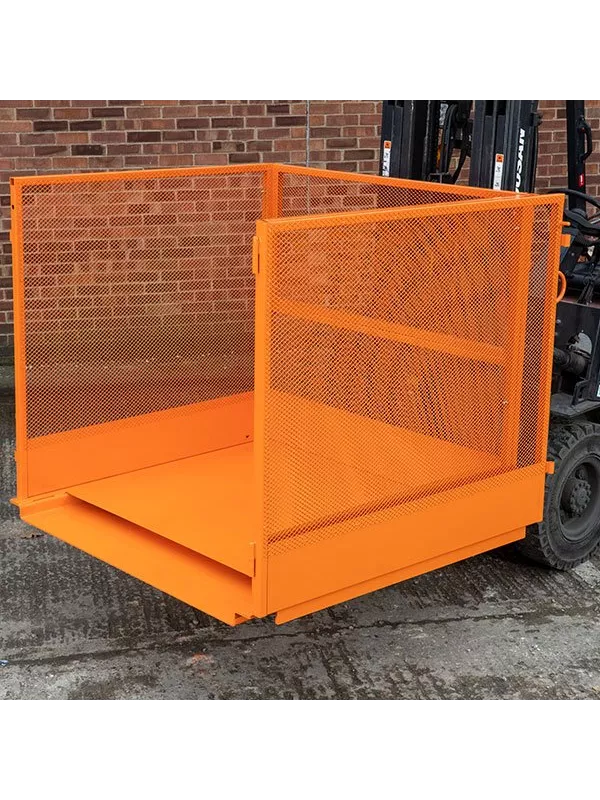

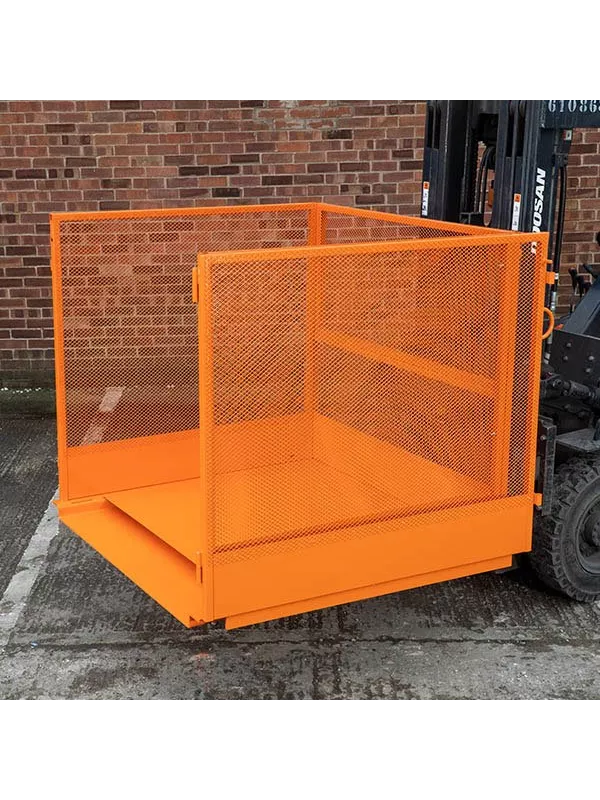

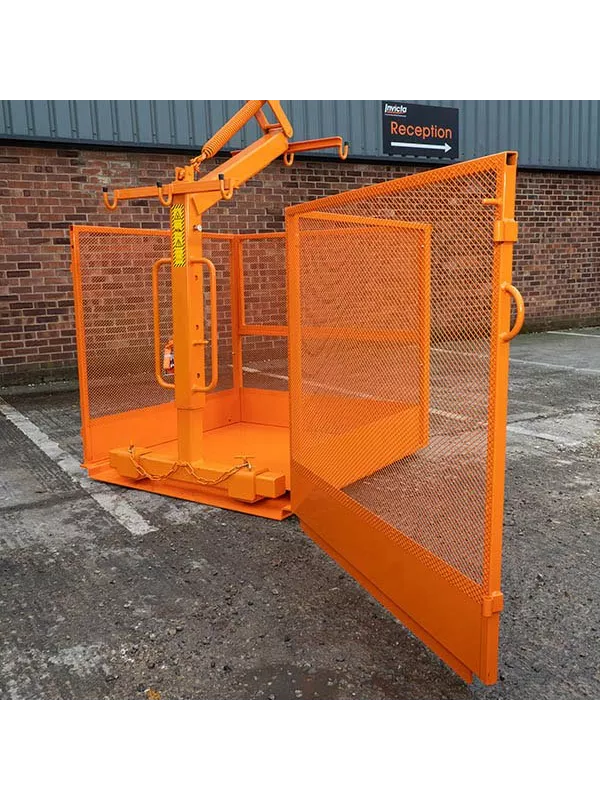

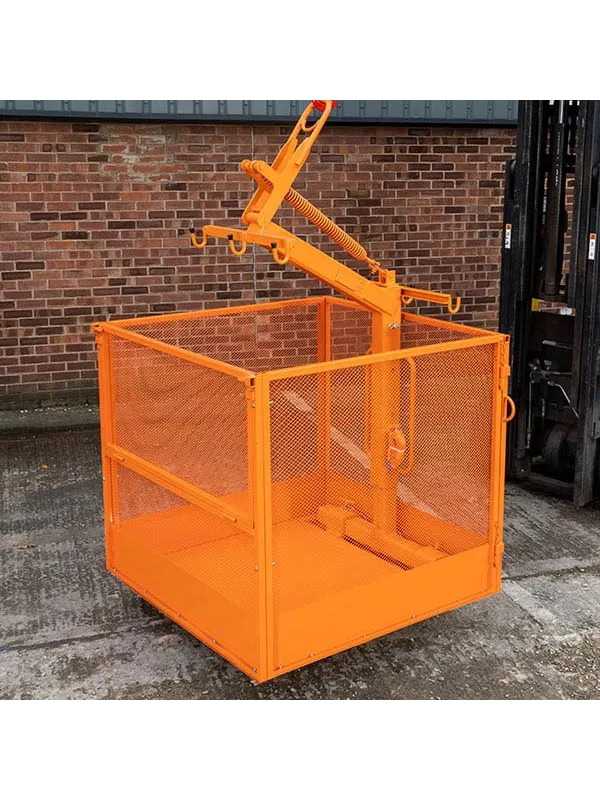

Invicta Forklift Crane Pallet Fork Cage (IPF-BOS-Cage)
The Invicta Forklift Crane Pallet Fork Cage is designed for the safe lifting of brick packs, blocks, and other building materials at height. Built with operator safety in mind, the cage also provides containment for collapsed or unstable loads during lifting operations.
Supplied flat-packed for efficient storage and transport, the cage features a hinged back gate for pallet fork entry and a front drop-down section for manual unloading. The bright orange finish improves visibility on-site, supporting health and safety compliance.
Key Features:
• Supplied flat pack for ease of storage and transportation
• Cage lifting centres at 635mm
• Hinged back gate opening for pallet fork entry
• Hinged drop-down front section for ease of manual unloading
• Painted in bright orange for visibility and site safety
Specifications:
• Width/Internal: 1340mm
• Depth/Internal: 1140mm
• Height/Internal: 1200mm
• Drop-Down Cage Height: 610mm
• Weight: 135kg
Operation:
Open rear gate by removing both drop pins and position crane forks centrally at maximum spread
Insert the pallet fork attachment into the fork slot until fully engaged
Close and lock the gate, securing both safety pins
Attach pallet forks to lifting hook to begin the lift
Use with the assistance of a banksman for safe handling
Once the load is in place, detach the lifting hook and empty the cage
To unload, pull both shoot bolts on the front drop gate
Once emptied, close the gate and secure bolts
Re-load by raising the pallet forks and cage
To leave cage in place and remove pallet forks:
10. Open rear gate by removing both drop pins
11. Slide out pallet forks from the fork slot
12. Close the rear gate and secure with drop pins
13. The cage and pallet forks are now ready for separate use
Maintenance:
Weekly inspection for:
a. All weld points
b. Frame wear or distortion
c. Damage to hinges, shoot bolts, or drop pinsCheck all bolts for tightness
Report and rectify any damage before reuse
Treat any surface rust with inhibitors, primers, and paint
Product certified for six months from manufacture – re-testing or inspection required thereafter by a competent person as per HSE guidance
Health & Safety:
The responsible manager must ensure operators are fully trained and safety pins correctly deployed
Confirm crane and attachment are suitable for the intended load
Ensure front gate is locked before lifting
Keep operators clear of the mechanism during operation
Never shock load the attachment
Gate pins must be inserted, retained, and checked before every use
Always operate within the safe working load of pallet forks, allowing for the weight of the cage
In case of failure during use, return to floor level before attempting any inspection or repair
IMPORTANT:
Do not operate with either gate unlocked. This product must only be used as designed and tested. For further guidance, consult your material handling provider or authorised attachment supplier.
