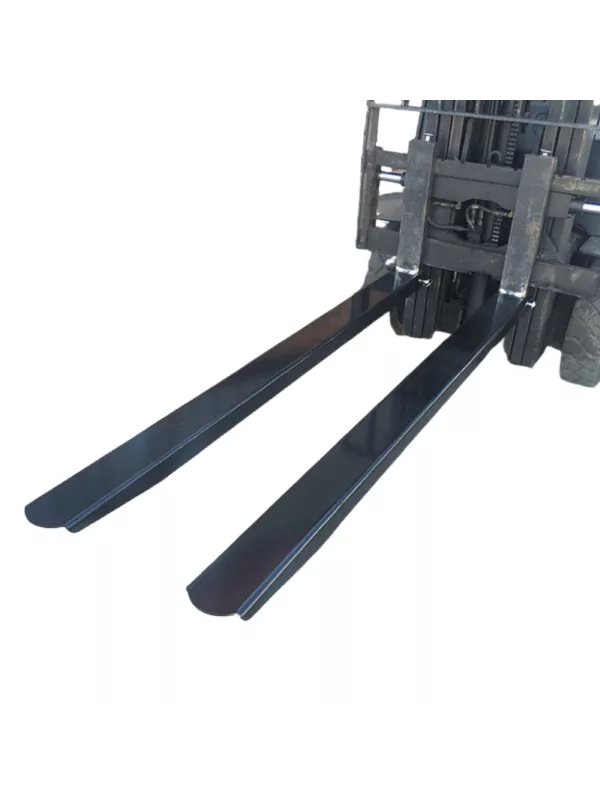

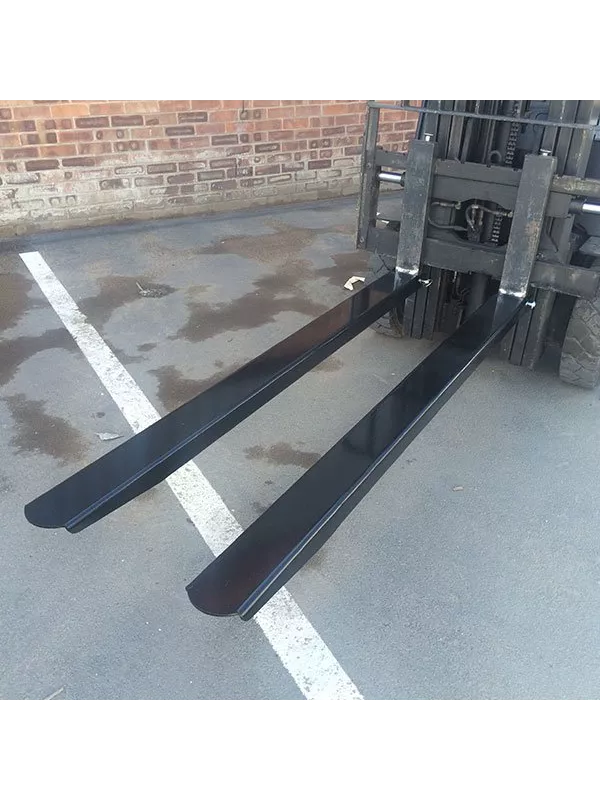

Invicta Bolt On Forklift Fork Extensions 4mm (IFE-448HDBO-N/F)
Fork Extensions offer a straightforward but efficient way to manage the occasional lengthy and awkward load that extends past the tips of the parent fork arm (maximum overhang 66%). These extensions are commonly used within the construction or lifting industries where a smooth underside reduces damage to the product. Width: 4mm.
Standard Features
• Tip thickness 6mm for ease of splitting packs
• Single channel fabrication with fully plated underside
• Fully pressed profile with rounded corners
• Zinc-plated heel pins for safe attachment to truck
• Fully enclosed finish on all 4 sides
• Supplied in pairs
Operation
• Position forks to the desired distance apart• Remove fork pocket heel pins from the extensions
• Drive forks into the fork extensions

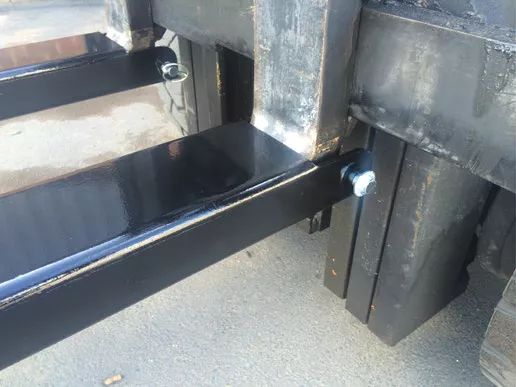

• Insert the fork pocket heel pins directly behind the heel of the fork and attach the safety lynch pin into the holes provided
• The extensions are now ready for use
Maintenance
• Weekly inspections required, focusing on:
A. All weld points
B. Wear and distortion of extensions and heel pin attachments
• Any damage or failure must be reported and rectified immediately before re-use
• Surface rusting should be treated regularly with proprietary inhibitors, primers, and paint
• Certified for six (6) months from the date of manufacture. After this, the product must be re-tested at an approved testing facility or inspected by a competent person in accordance with HSE advice
Health & Safety
• Operators must be fully trained in the use, operation, and maintenance of the attachment• Ensure heel pins are correctly inserted and retained before every use
• If heel pins are on chains, ensure they are not caught under the forklift wheels
• Do not drive into extensions without removing heel pins
• Do not shock-load or tip-load the fork extensions
• Ensure the load and truck are compatible with the attachment
• Maximum extension length must not exceed 66% of the parent fork length
Model Information
IFE448HDBONF x 1220 – Weight: 17kg – C of G: 610mm – Min Fork Length: 750mm
IFE454HDBONF x 1372 – Weight: 19kg – C of G: 686mm – Min Fork Length: 823mm
IFE460HDBONF x 1525 – Weight: 21kg – C of G: 762mm – Min Fork Length: 915mm
IFE463HDBONF x 1600 – Weight: 23kg – C of G: 800mm – Min Fork Length: 960mm
IFE465HDBONF x 1650 – Weight: 24kg – C of G: 825mm – Min Fork Length: 990mm
IFE472HDBONF x 1829 – Weight: 26kg – C of G: 914mm – Min Fork Length: 1100mm
IFE478HDBONF x 1981 – Weight: 28kg – C of G: 990mm – Min Fork Length: 1200mm
IFE484HDBONF x 2134 – Weight: 30kg – C of G: 1067mm – Min Fork Length: 1300mm
IFE496HDBONF x 2438 – Weight: 34kg – C of G: 1219mm – Min Fork Length: 1500mm
