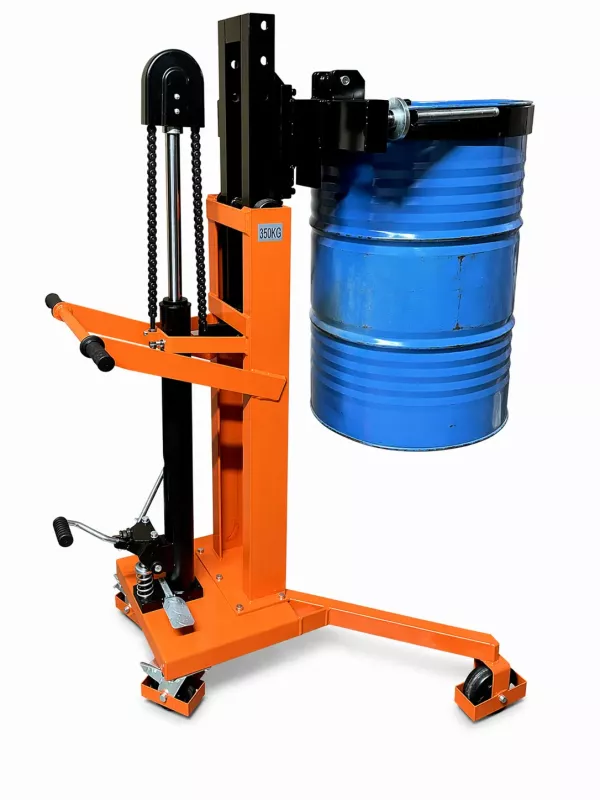

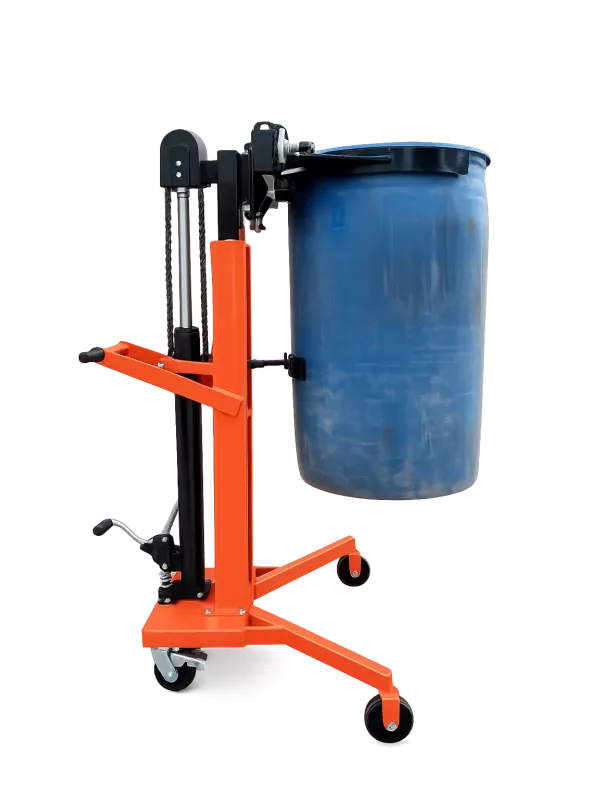

Drum Lifter with Drum Clamp Attachment – 350kg Capacity (CBJ-K)
Heavy-Duty Drum Lifter with Clamp Attachment
This Drum Lifter with Drum Clamp Attachment is a robust manual handling solution designed to make drum lifting and movement safer, easier and more efficient. Built for industrial environments, it is ideal for warehouses, workshops, production areas, manufacturing facilities and storage spaces where drums need to be lifted, transported or positioned with greater control.

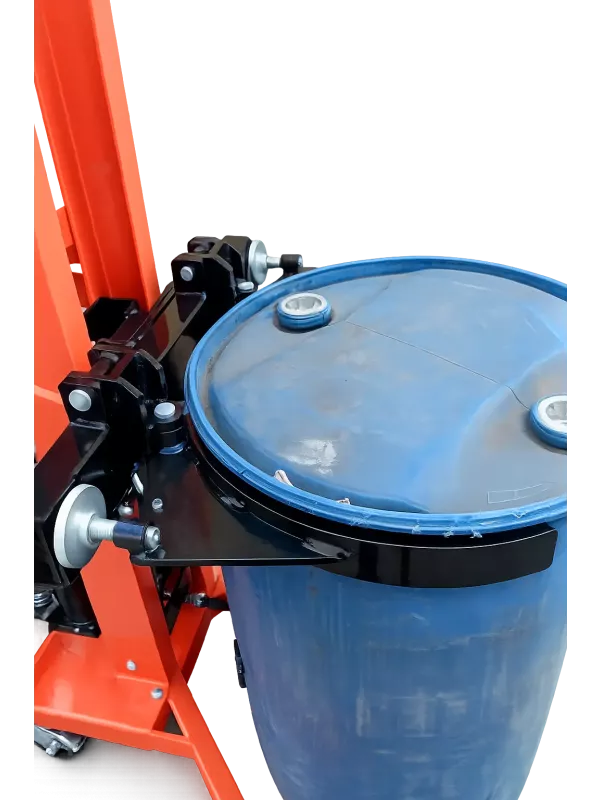

The foot-operated hydraulic pump allows the operator to raise drums smoothly without the need for electric power. The secure clamp attachment grips the top rim of the drum, helping to keep it stable during lifting, movement and placement.
With a 350kg lifting capacity, this drum lifter is suitable for handling 210L steel drums and 200L closed plastic drums, making it a practical choice for everyday drum handling tasks.
How to Use the Drum Lifter with Drum Clamp
Before use, check that the drum is compatible with the lifter and does not exceed the 350kg maximum capacity. Position the lifter in front of the drum and align the clamp attachment with the top rim of the drum.
Once aligned, secure the clamp onto the drum rim before lifting. Use the foot-operated hydraulic pump to raise the drum to the required height. The drum can then be moved carefully across the working area using the mobile frame.
When the drum is in the required position, lower it in a controlled manner and only release the clamp once the drum is stable. Always follow workplace manual handling procedures and ensure the drum is properly secured before movement.
Key Features
- 350kg lifting capacity for heavy-duty drum handling
- Foot-operated hydraulic pump for controlled lifting

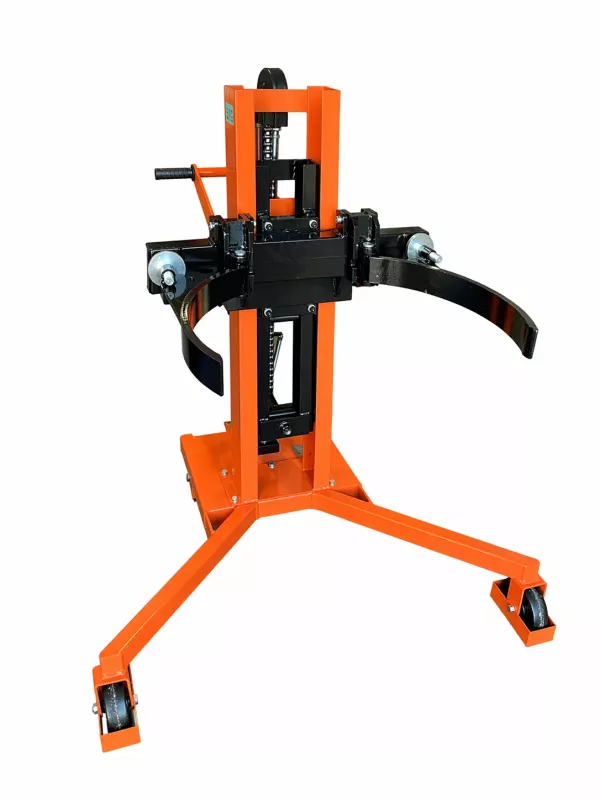

- Secure top-rim clamp attachment for stable drum handling
- Suitable for 210L steel drums
- Suitable for 200L closed plastic drums
- 500mm lifting height for practical loading and positioning
- Can load and unload drums from pallets and ground level
- Designed to glide over pallets and remove drums from containment skid corners
- Mobile frame with fixed and swivel wheels for easy manoeuvring
- Rear swivel wheels with brake for controlled positioning
- Fold-away foot pedal to help reduce contact while moving
- Suitable for plastic and metal drums
Technical Specification
- Model:
CBJ-K - Product Type: Drum lifter / drum carrier with clamp attachment
- Lifting Capacity: 350kg
- Lifting Height: 500mm
- Front Wheel Diameter: 150mm
- Rear Wheel Diameter: 125mm
- Lifting Per Stroke: 11.6mm
- Suitable Drum Diameter: 572mm / 22.5 inches
- Suitable Drum Capacity: 210L / 55 gallon drums
- Compatible Drum Types: 210L steel drums and 200L closed plastic drums
- Unit Weight: 138kg
An optional smaller clamp attachment is also available on request for 120L drums, suitable for approximate drum sizes of 450mm diameter x 750–800mm height.
Ideal Applications
This drum lifter is suitable for a wide range of workplace drum handling tasks, including warehouse storage, workshop handling, production area movement, stockroom use, manufacturing facilities, maintenance departments and chemical storage areas.
It is especially useful where drums need to be lifted from pallets, moved across a working area, positioned safely or removed from containment skids with limited access.
Why Choose This Drum Lifter?
The Drum Lifter with Drum Clamp Attachment provides a practical and reliable way to move heavy drums while reducing manual handling effort. The hydraulic lifting system gives controlled operation, while the clamp attachment helps keep the drum secure during transport and positioning.
Its mobile frame makes it easy to manoeuvre in busy working environments, and the design is suitable for both steel and closed plastic drums. For businesses handling heavy drums regularly, this lifter offers a safer, more efficient solution for everyday drum movement.
