Tough Lock Anti-Fatigue Matting Tiles and Safety Edges (TAT)
| SKU | Product | 1+ Prices include VAT Prices exclude VAT | Quantity | |
|---|---|---|---|---|
| TAC070001F | Tough Lock Anti-Fatigue Matting Tiles and Safety Edges: Size: Yellow Female Corner Edge | £8.06 £6.72 | ||
| TAC070001M | Tough Lock Anti-Fatigue Matting Tiles and Safety Edges: Size: Yellow Male Corner Edge | £8.06 £6.72 | ||
| TAE070001F | Tough Lock Anti-Fatigue Matting Tiles and Safety Edges: Size: Yellow Female Edge | £8.06 £6.72 | ||
| TAE070001M | Tough Lock Anti-Fatigue Matting Tiles and Safety Edges: Size: Yellow Male Edge | £8.06 £6.72 | ||
| TAC170001F | Tough Lock Anti-Fatigue Matting Tiles and Safety Edges: Size: Orange Female Corner Edge | £8.06 £6.72 | ||
| TAC170001M | Tough Lock Anti-Fatigue Matting Tiles and Safety Edges: Size: Orange Male Corner Edge | £8.06 £6.72 | ||
| TAE170001F | Tough Lock Anti-Fatigue Matting Tiles and Safety Edges: Size: Orange Female Edge | £8.06 £6.72 | ||
| TAE170001M | Tough Lock Anti-Fatigue Matting Tiles and Safety Edges: Size: Orange Male Edge | £8.06 £6.72 | ||
| TAT010001 | Tough Lock Anti-Fatigue Matting Tiles and Safety Edges: Size: Tile Black 0.5m x 0.5m | £29.04 £24.20 |
Tough Lock Anti-Fatigue Matting Tiles & Safety Edges
Tough Lock Anti-Fatigue Matting is a modular industrial flooring system designed to improve comfort in workplaces where employees spend prolonged periods standing.
The system combines 500 x 500mm interlocking anti-fatigue tiles with optional high-visibility safety edging, allowing you to create anything from an individual workstation mat to a larger anti-fatigue floor area.
Each black tile features a hardwearing PVC checker plate surface and cushioned foam backing. Yellow or orange bevelled edges can then be added around exposed sides to create a smoother transition between the surrounding floor and the 15mm high matting.

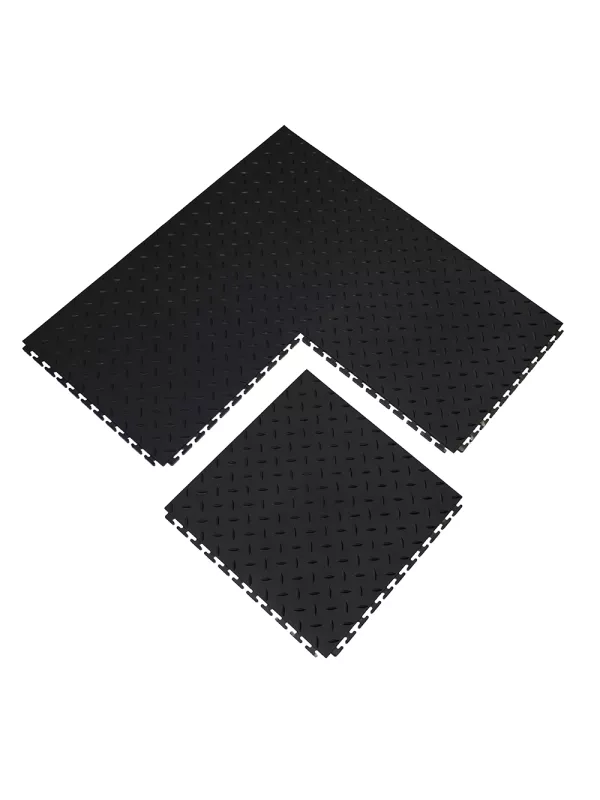

Build an Anti-Fatigue Floor to Suit Your Workspace
The modular 500 x 500mm tile format makes Tough Lock easy to configure around individual workstations, production lines and larger standing areas.
Tiles simply interlock with adjoining sections to create the required floor area. Additional tiles can be incorporated later if the working area expands, while individual damaged or worn tiles can be replaced without removing the complete installation.
The hidden interlocking joints create a neat, professional appearance once the floor is assembled.

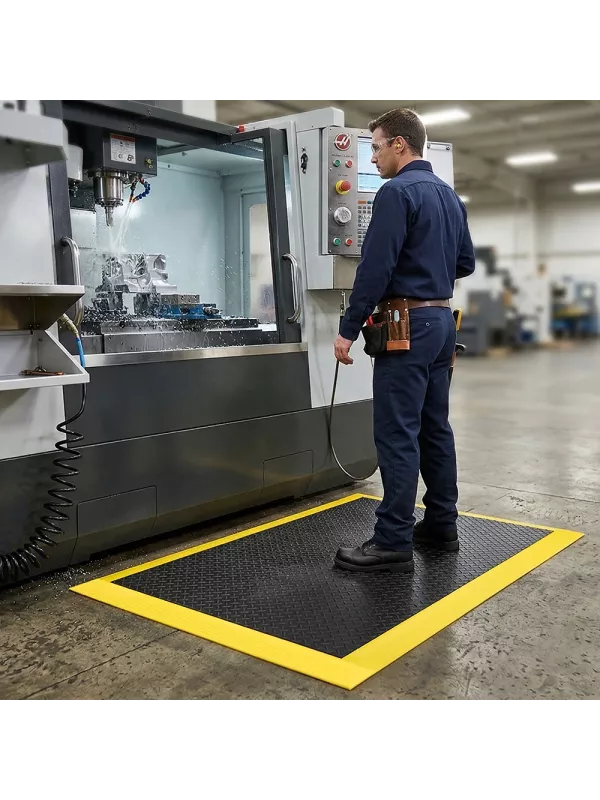

Designed for Prolonged Standing
Each Tough Lock tile is 15mm thick and incorporates cushioned foam backing designed to improve operator comfort during prolonged periods of standing.
This makes the system particularly suitable for employees working at assembly stations, packing benches, inspection areas, machinery and other fixed industrial workstations.

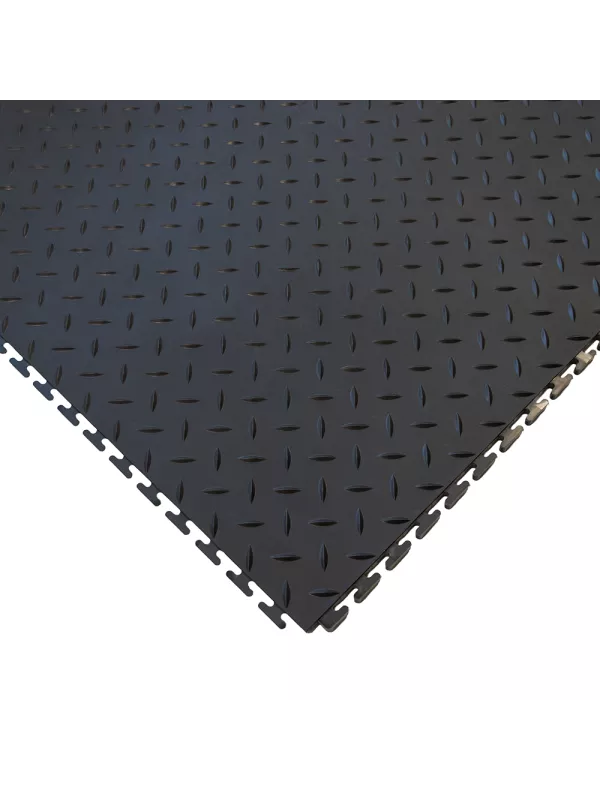

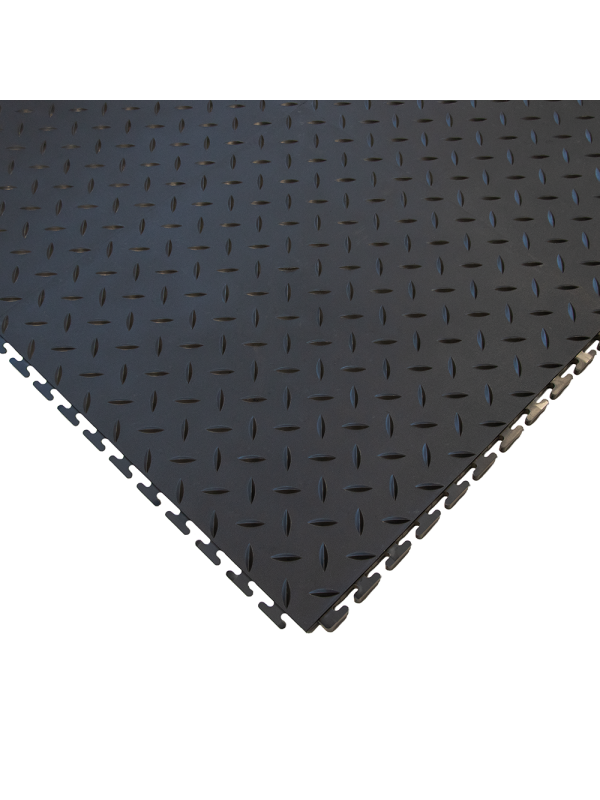

Hardwearing PVC Checker Plate Surface
The black tile is manufactured from hardwearing PVC with a durable checker plate surface designed to provide additional grip in industrial environments.
The robust construction makes Tough Lock suitable for regular use in factories, warehouses and workshops where a durable anti-fatigue flooring solution is required.
Manufactured Using 75% Recycled Content
Tough Lock Anti-Fatigue Tiles are manufactured using 75% recycled content, helping businesses incorporate products containing recycled material into workplace improvement and CSR initiatives.
The cushioned foam backing is produced using regenerated factory waste while continuing to provide the supportive properties required for standing work areas.

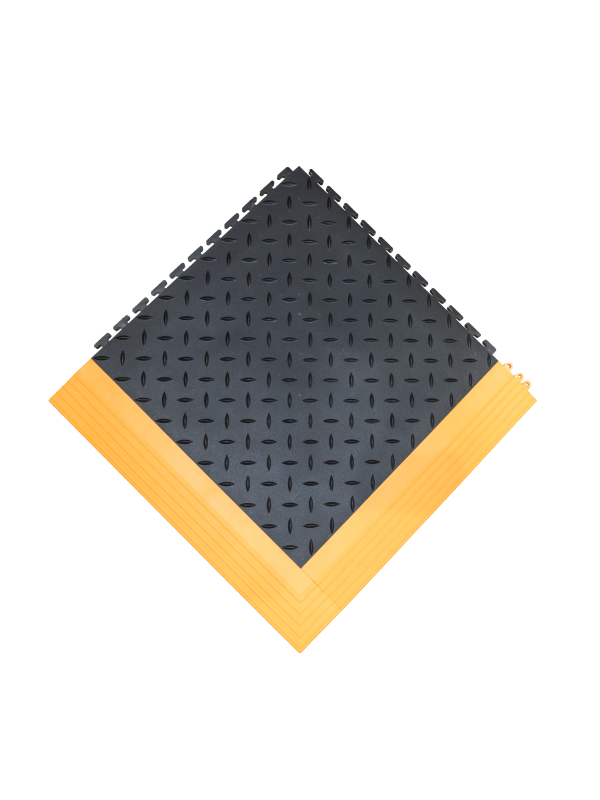

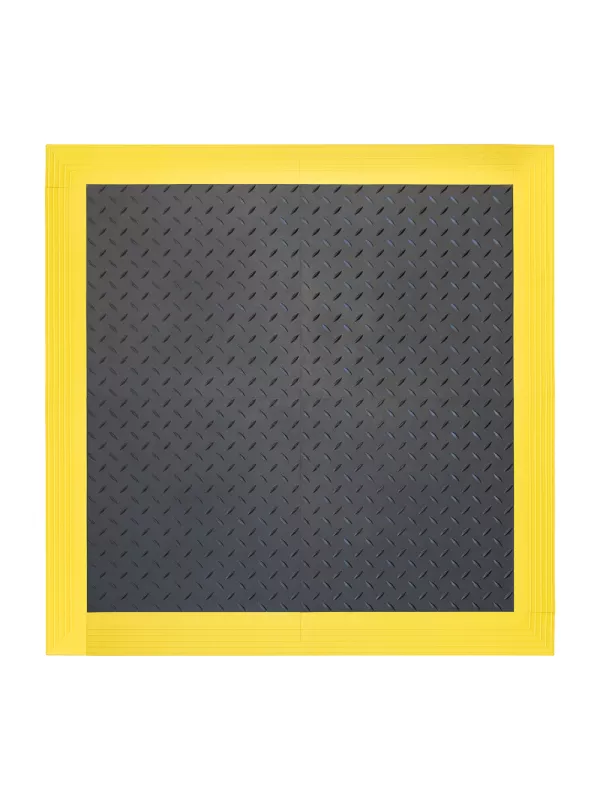

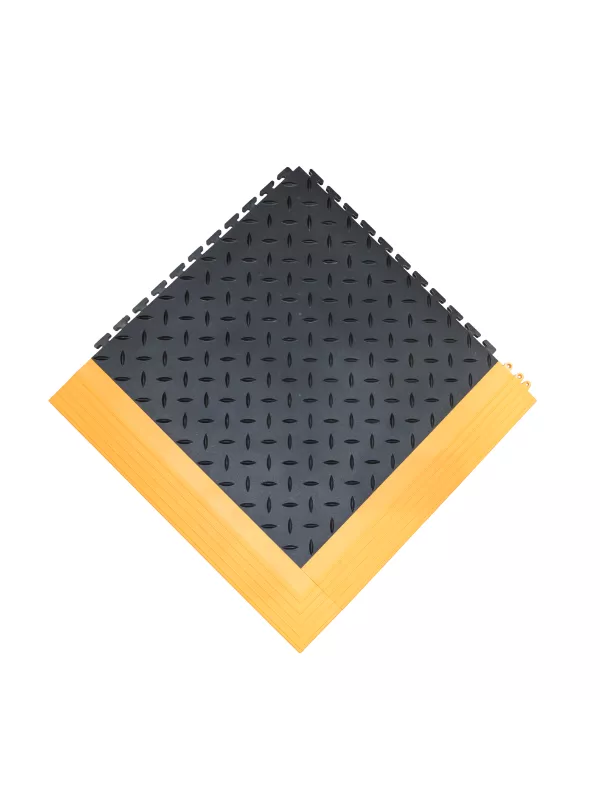

Optional Yellow or Orange Safety Edging
High-visibility bevelled ramp edging is available to finish exposed sides of a Tough Lock installation.
The edging is manufactured from hardwearing PVC and aligns with the 15mm height of the tile, creating a smoother transition between the surrounding floor and the raised matting surface.
This can help reduce exposed-edge trip hazards and provides a clearly visible boundary around the anti-fatigue work area.
Choose between yellow and orange edging to suit your workplace safety scheme or preferred visual identification.

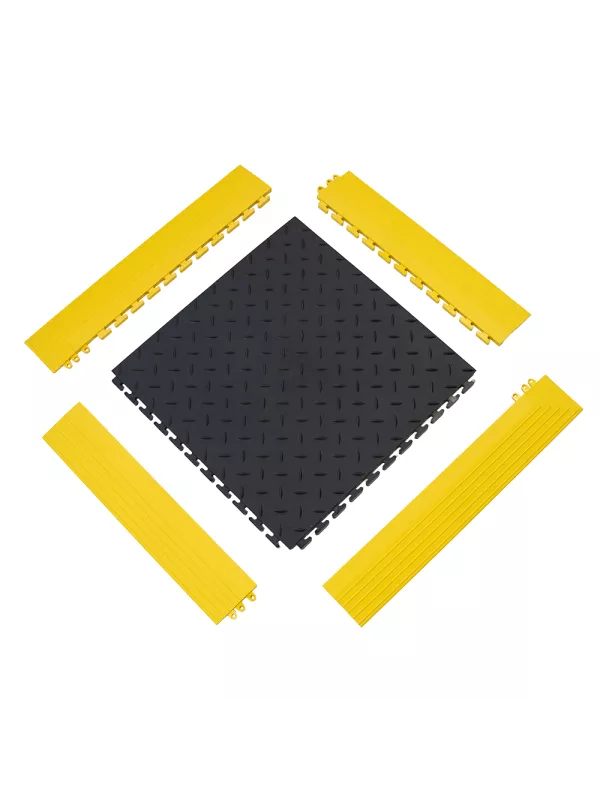

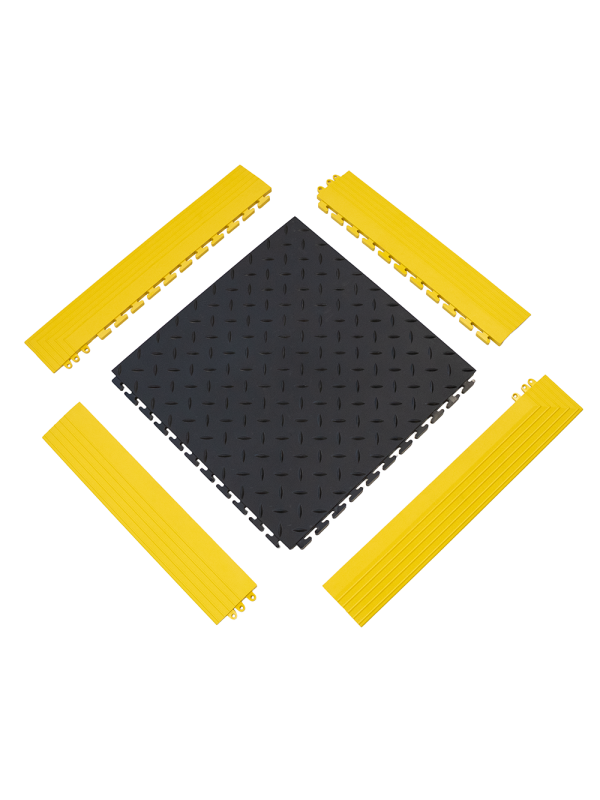

Tough Lock Edging Key
The Tough Lock edging system consists of four different component types. The correct combination depends on the exposed interlocking edges of the tiles and whether the component is being fitted along a straight section or at a corner.
- Male Edge: Straight 100 x 500mm bevelled ramp edge.
- Female Edge: Straight 100 x 500mm bevelled ramp edge with the opposite interlocking connection.
- Male Corner Edge: 100 x 600mm bevelled section designed to create the appropriate outside corner while connecting to a Male edge position.
- Female Corner Edge: 100 x 600mm bevelled section designed to create the opposite outside corner orientation.
Male and Female components are both required when creating a complete border because opposite sides of the Tough Lock tiles use different interlocking profiles.
What Do I Need for Full Edging?
For a standard rectangular Tough Lock matting area where all four sides are exposed, you will require both Male and Female straight edges together with four corner pieces.
- 2 x Male Corner Edges
- 2 x Female Corner Edges
- Male Straight Edges for the remaining exposed Male sides
- Female Straight Edges for the remaining exposed Female sides
Each Tough Lock tile measures 500 x 500mm and each straight edge covers one 500mm tile edge.
Simple Full Edging Calculation
For a rectangular installation measuring W tiles wide x D tiles deep:
- Tiles required: W x D
- Male Corner Edges: 2
- Female Corner Edges: 2
- Male Straight Edges: W + D - 2
- Female Straight Edges: W + D - 2

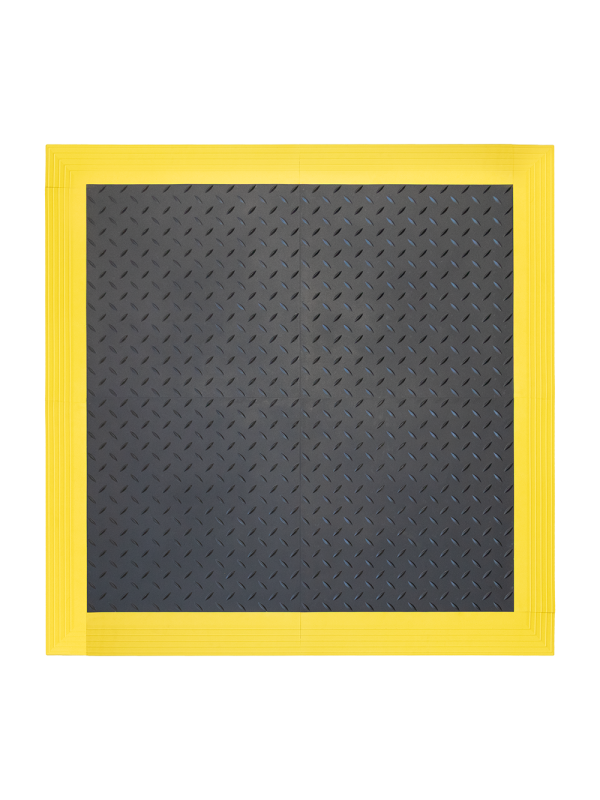

Example - 1m x 1m Matting Area
A 1m x 1m installation uses 2 tiles x 2 tiles and requires:
- 4 x Tough Lock Tiles
- 2 x Male Corner Edges
- 2 x Female Corner Edges
- 2 x Male Straight Edges
- 2 x Female Straight Edges
Example - 1.5m x 1m Matting Area
A 1.5m x 1m installation uses 3 tiles x 2 tiles and requires:
- 6 x Tough Lock Tiles
- 2 x Male Corner Edges
- 2 x Female Corner Edges
- 3 x Male Straight Edges
- 3 x Female Straight Edges
Example - 2m x 1.5m Matting Area
A 2m x 1.5m installation uses 4 tiles x 3 tiles and requires:
- 12 x Tough Lock Tiles
- 2 x Male Corner Edges
- 2 x Female Corner Edges
- 5 x Male Straight Edges
- 5 x Female Straight Edges
Please note: These quantities apply to a rectangular installation where all four sides are exposed. Matting installed against walls, within doorways or in irregular layouts may require a different combination of edging.
If you are unsure what you require, contact us with the overall dimensions of your matting area and we can help calculate the tiles and edging required.
Available Tough Lock Components

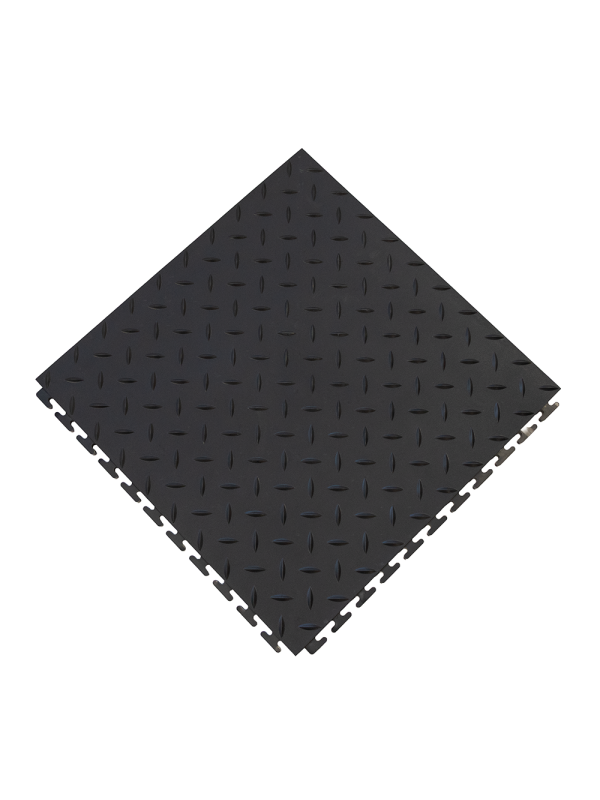

Black Anti-Fatigue Tile
- Part number: TAT010001
- Component: Anti-fatigue tile
- Size: 500 x 500mm
- Colour: Black
- Thickness: 15mm
- Weight: 1.86kg
Yellow Female Corner Edge
- Part number: TAC070001F
- Component: Female Corner Edge
- Size: 100 x 600mm
- Colour: Yellow
- Weight: 0.34kg
Yellow Male Corner Edge
- Part number: TAC070001M
- Component: Male Corner Edge
- Size: 100 x 600mm
- Colour: Yellow
- Weight: 0.37kg
Yellow Female Edge
- Part number: TAE070001F
- Component: Female Straight Edge
- Size: 100 x 500mm
- Colour: Yellow
- Weight: 0.29kg
Yellow Male Edge
- Part number: TAE070001M
- Component: Male Straight Edge
- Size: 100 x 500mm
- Colour: Yellow
- Weight: 0.34kg
Orange Female Corner Edge
- Part number: TAC170001F
- Component: Female Corner Edge
- Size: 100 x 600mm
- Colour: Orange
- Weight: 0.31kg
Orange Male Corner Edge
- Part number: TAC170001M
- Component: Male Corner Edge
- Size: 100 x 600mm
- Colour: Orange
- Weight: 0.31kg
Orange Female Edge
- Part number: TAE170001F
- Component: Female Straight Edge
- Size: 100 x 500mm
- Colour: Orange
- Weight: 0.31kg
Orange Male Edge
- Part number: TAE170001M
- Component: Male Straight Edge
- Size: 100 x 500mm
- Colour: Orange
- Weight: 0.31kg
Key Features
- Modular industrial anti-fatigue matting system
- 500 x 500mm interlocking black tiles
- 15mm overall tile thickness
- Designed to improve comfort during prolonged standing
- Cushioned foam backing
- Hardwearing PVC construction
- Durable checker plate surface
- Manufactured using 75% recycled content
- Foam backing manufactured from regenerated factory waste
- Fast interlocking installation
- Hidden joints create a neat finished appearance
- Individual tiles can be replaced independently
- Optional high-visibility yellow or orange ramp edging
- Male and Female straight edges available
- Male and Female Corner Edges available
- Bevelled edging helps reduce exposed-edge trip hazards
- Suitable for dry indoor industrial environments
Typical Applications
- Assembly stations
- Packing benches
- Production lines
- Machine operator positions
- Inspection areas
- Warehouse picking areas
- Production cells
- Fabrication bays
- Factories
- Warehouses
- Workshops
- Industrial workstations
- Areas where employees stand for prolonged periods

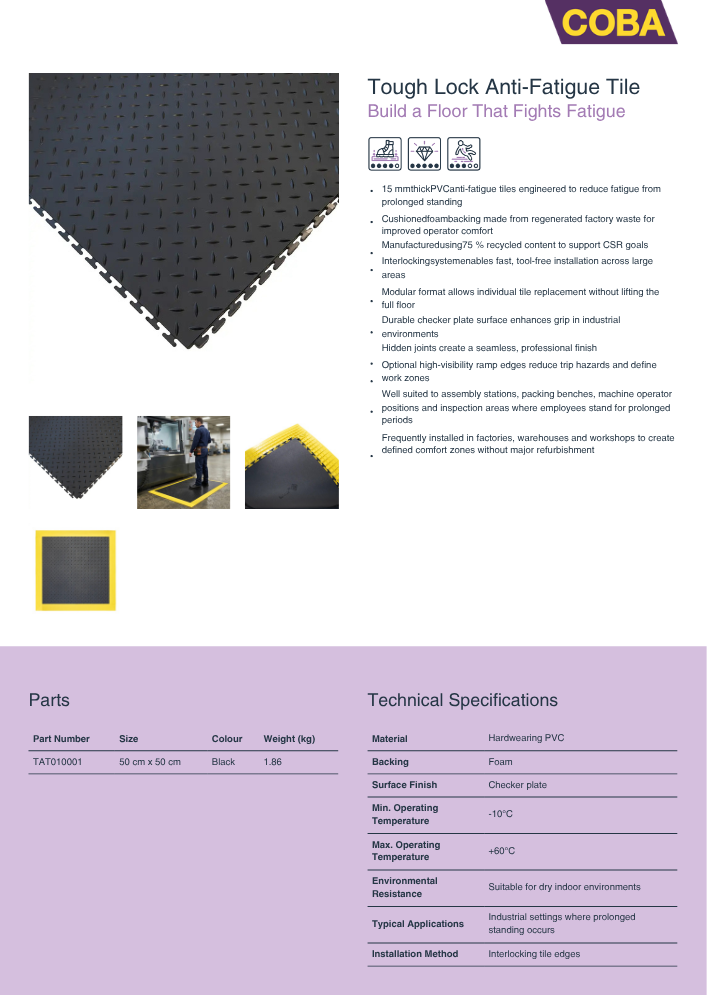

Technical Specifications
- Tile material: Hardwearing PVC
- Tile backing: Foam
- Tile dimensions: 500 x 500mm
- Tile thickness: 15mm
- Tile colour: Black
- Tile surface: Checker plate
- Recycled content: 75%
- Edging material: Hardwearing PVC
- Edging colours: Yellow or orange
- Straight edge dimensions: 100 x 500mm
- Corner edge dimensions: 100 x 600mm
- Minimum operating temperature: -10°C
- Maximum operating temperature: +60°C
- Environmental resistance: Suitable for dry indoor environments
- Installation method: Interlocking edges

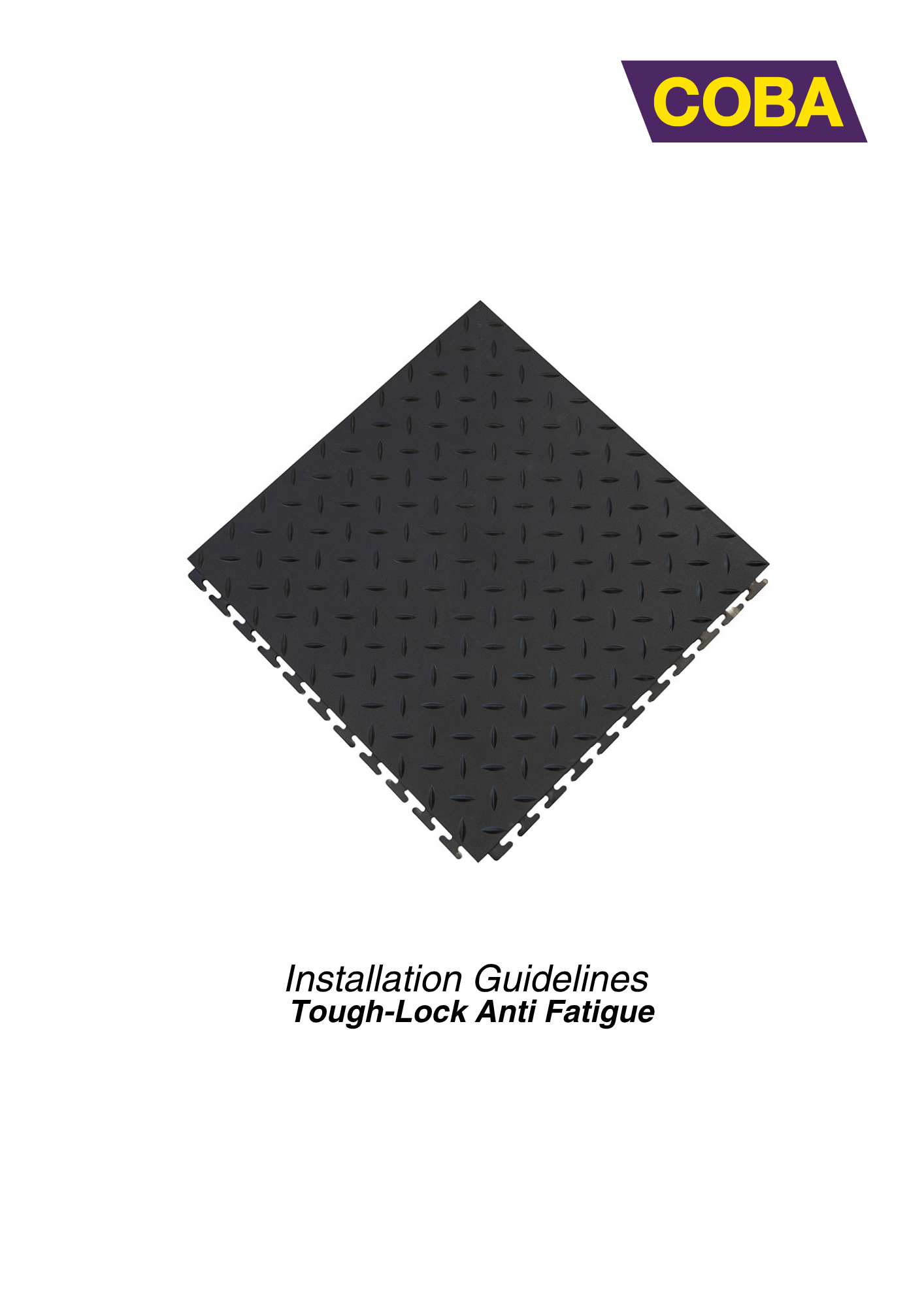

Installation Guidance
For best results, Tough Lock should be installed onto a clean and level floor. Existing dust and dirt should be removed before installation and significant variations in the subfloor should be repaired before the tiles are laid.
The manufacturer recommends allowing the tiles to acclimatise for at least 24 to 48 hours before installation in an ambient temperature of approximately 16°C to 24°C.
When installing up to walls or other fixed objects, allow approximately 5mm for expansion. Larger installations may require a greater expansion allowance.
The tiles are designed for dry indoor environments and are not suitable for regular exposure to direct sunlight.
Easy Modular Installation and Maintenance
The interlocking design allows Tough Lock tiles to be assembled into the required floor area without permanently fixing every tile to the subfloor.
The modular format also simplifies future maintenance. If an individual tile becomes damaged or worn, it can be replaced without removing the complete matting system.
For routine cleaning, the manufacturer recommends regular light cleaning with a damp mop and a pH-balanced floor cleaning product.

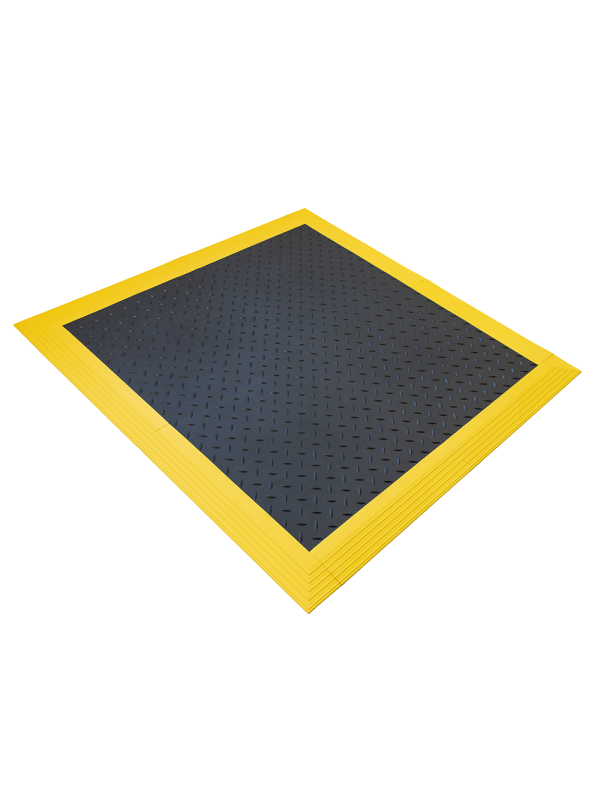

Complete Your Matting with Safety Edging
Where the matting does not terminate against a wall or another fixed surface, adding Tough Lock safety edging provides a more complete installation.
The yellow and orange ramp edges create a smoother transition onto the matting while also making the perimeter easier to identify. This is particularly useful in production areas, warehouse pick faces and locations where pedestrians or pallet trucks regularly cross between the surrounding floor and the raised tile system.
Select the black tile and the required Male, Female and Corner Edge components from the available product options to build a Tough Lock installation that suits your workplace.
