COBATrack HD Temporary Roadway Mats (TT010001HD)
| SKU | Product | 1+ Prices include VAT Prices exclude VAT | 20+ Prices include VAT Prices exclude VAT | 50+ Prices include VAT Prices exclude VAT | Quantity | |
|---|---|---|---|---|---|---|
| CT01SSC2 | COBATrack HD Temporary Roadway Mats: Options: Steel Single Connector - 205 x 20mm | £6.23 £5.19 | £6.23 £5.19 | £6.23 £5.19 | ||
| CT01SDC2 | COBATrack HD Temporary Roadway Mats: Options: Steel Double Connector - 205 x 137mm | £8.12 £6.77 | £8.12 £6.77 | £8.12 £6.77 | ||
| CT01PUSC2 | COBATrack HD Temporary Roadway Mats: Options: PU Single Connector - 193 x 63mm | £12.55 £10.46 | £12.55 £10.46 | £12.55 £10.46 | ||
| CT01PUDC2 | COBATrack HD Temporary Roadway Mats: Options: PU Double Connector - 193 x 193mm | £15.17 £12.64 | £15.17 £12.64 | £15.17 £12.64 | ||
| TT010001HD | COBATrack HD Temporary Roadway Mats: Options: COBATrack Mat HD - 2400 x 1200mm | £175.43 £146.19 | £147.59 £122.99 | £140.98 £117.48 |
COBATrack HD Temporary Roadways
COBATrack HD provides a high-capacity temporary roadway system for heavy plant, machinery and vehicle access across demanding construction and infrastructure environments.
Manufactured from recycled high-density polyethylene (HDPE), each mat combines a substantial 15mm structural thickness with dual heavy traction surfaces for dependable grip in all-weather conditions.
Depending on the supporting ground conditions, COBATrack HD can accommodate loads from 50 to 120 tonnes, making it ideal for temporary roadways where significantly greater load distribution is required than with standard ground protection matting.
Temporary Roadways for Heavy Plant and Machinery
COBATrack HD is designed for demanding projects where heavy machinery and plant require reliable temporary roadways over vulnerable or unprepared ground.
The modular mats can be connected to create temporary vehicle routes across construction sites, infrastructure projects, utilities works and other locations where permanent hardstanding would be impractical or unnecessary.
By creating a defined temporary roadway over the underlying ground, the system helps distribute vehicle loads and protect the supporting terrain from direct traffic.
Supports Loads from 50 to 120 Tonnes
COBATrack HD is designed to support loads from 50 to 120 tonnes, depending on the condition and stability of the ground beneath the installation.
This high load capacity makes the system suitable for heavy plant access, machinery movements and temporary roadways across major construction and infrastructure projects.
Please note: Load capacity is dependent on ground conditions. The supporting surface and intended loading should always be assessed before installation and use.
15mm Recycled HDPE Construction
Each COBATrack HD Mat is manufactured from recycled high-density polyethylene and measures 2400 x 1200mm.
The 15mm thick structural design provides the durability required for heavy plant and demanding temporary access applications while retaining the weather resistance and reusable characteristics of HDPE.
Each mat weighs 44kg and can be lifted, repositioned and reused across different projects.

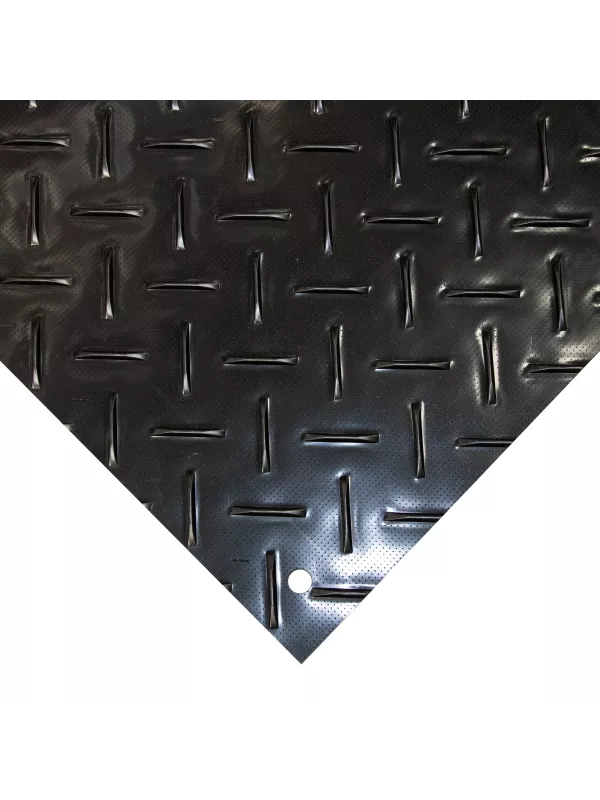

Dual Heavy Traction Surfaces
COBATrack HD features heavy traction surfaces designed to provide reliable grip in demanding outdoor conditions.
The traction design makes the mats particularly suitable for temporary roadways exposed to changing weather, construction traffic and challenging site conditions.
Temporary Roadways for All-Weather Conditions
The HDPE construction is suitable for all-weather environments and can operate across temperatures from -20°C to +40°C.
This makes COBATrack HD suitable for temporary external access on construction sites, infrastructure projects, utilities works and other locations where a durable roadway may be required throughout changing weather conditions.
Reusable Modular Roadway System
COBATrack HD is designed as a reusable temporary roadway rather than a permanent ground installation.
The mats can be loose laid and connected to adjoining sections to create a roadway or access area suited to the required site layout. Once the project is complete, the mats can be disconnected, removed and stored for future use.
This modular approach also allows temporary roadways to be extended or reconfigured as access requirements change.
Choice of PU or Steel Connectors
COBATrack HD Mats are compatible with reusable PU and steel connectors, allowing multiple mats to be joined together to create a secure temporary roadway system.
Both connector materials are available in Single and Double configurations to suit different layouts.

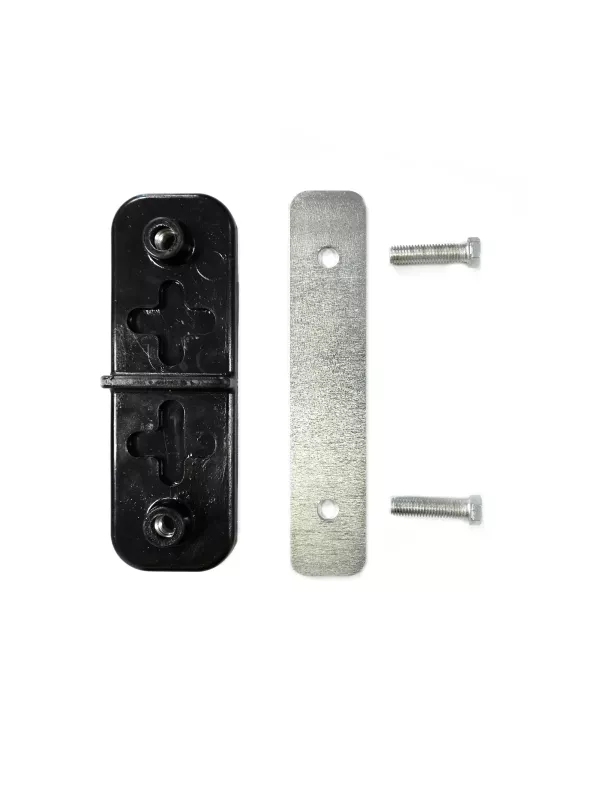

PU Connectors
PU connectors provide a secure and reusable connection between adjoining COBATrack Mats. They are supplied with plates and bolts and can be fitted while the mats are laid side by side.
A suitable socket or spanner is required for fitting and removing PU connectors.
Steel Connectors
Steel connectors provide a robust, reusable and cost-effective method of joining COBATrack Mats.
The bolt-free design allows the connectors to be inserted into the designated connection points in the mats, providing a quick installation method where temporary roadways need to be regularly deployed and removed.
Single and Double Connectors
- Single Connectors: Provide a single connection point between adjoining COBATrack Mats.
- Double Connectors: Provide two connection positions within one component for suitable mat layouts and junctions.
The type and quantity of connectors required will depend on the dimensions and configuration of the temporary roadway.
Available COBATrack HD Components

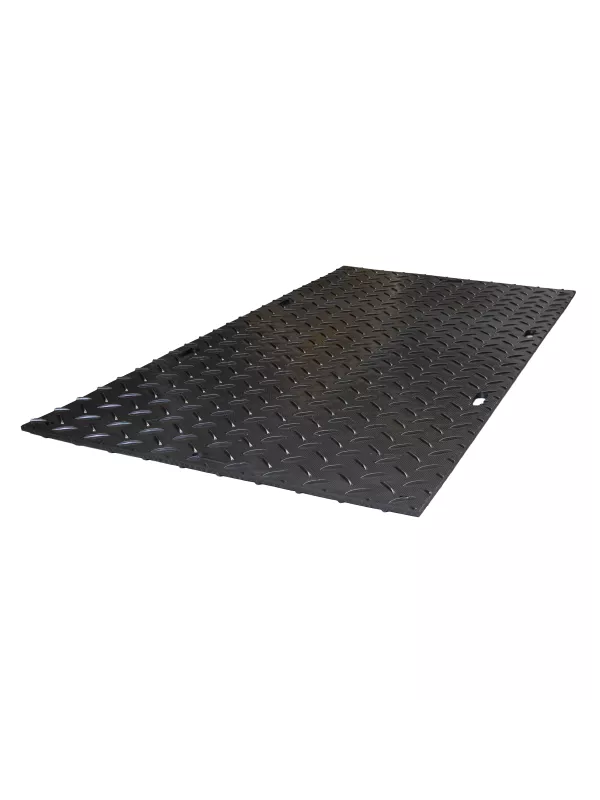

COBATrack HD Temporary Roadway Mat
- Part number: TT010001HD
- Size: 2400 x 1200mm
- Thickness: 15mm
- Colour: Black
- Material: Recycled HDPE
- Weight: 44kg
- Load capacity: 50 to 120 tonnes depending on ground conditions
COBATrack PU Single Connector
- Part number: CT01PUSC
- Size: 193 x 63mm
- Colour: Black
- Material: PU
- Weight: 0.45kg
- Supplied with plates and bolts
- Reusable: Yes
COBATrack PU Double Connector
- Part number: CT01PUDC
- Size: 193 x 193mm
- Colour: Black
- Material: PU
- Weight: 1kg
- Supplied with plates and bolts
- Reusable: Yes
COBATrack Steel Single Connector
- Part number: CT01SSC
- Size: 205 x 20mm
- Colour: Steel
- Material: Steel
- Weight: 0.1kg
- Bolt-free installation
- Reusable: Yes
COBATrack Steel Double Connector
- Part number: CT01SDC
- Size: 205 x 137mm
- Colour: Steel
- Material: Steel
- Weight: 0.4kg
- Bolt-free installation
- Reusable: Yes
Key Features
- High-capacity temporary roadway system
- Designed for heavy plant and machinery access
- Supports loads from 50 to 120 tonnes depending on ground conditions
- Manufactured from recycled HDPE
- 2400 x 1200mm mat dimensions
- 15mm structural thickness
- 44kg mat weight
- Dual heavy traction surfaces
- Reliable grip in all-weather conditions
- Reusable modular construction
- Loose-lay installation
- Compatible with PU and steel connectors
- Single and Double Connector options available
- Suitable for large-scale construction and infrastructure projects
- Operating temperature range from -20°C to +40°C
- Suitable for all-weather conditions
Typical Applications
- Temporary roadways
- Heavy plant access
- Heavy machinery access
- Large-scale construction sites
- Civil engineering projects
- Infrastructure works
- Utilities projects
- Temporary construction access
- Heavy vehicle access routes
- Crane access areas
- Site compounds
- Military operations
- Projects requiring substantial load distribution

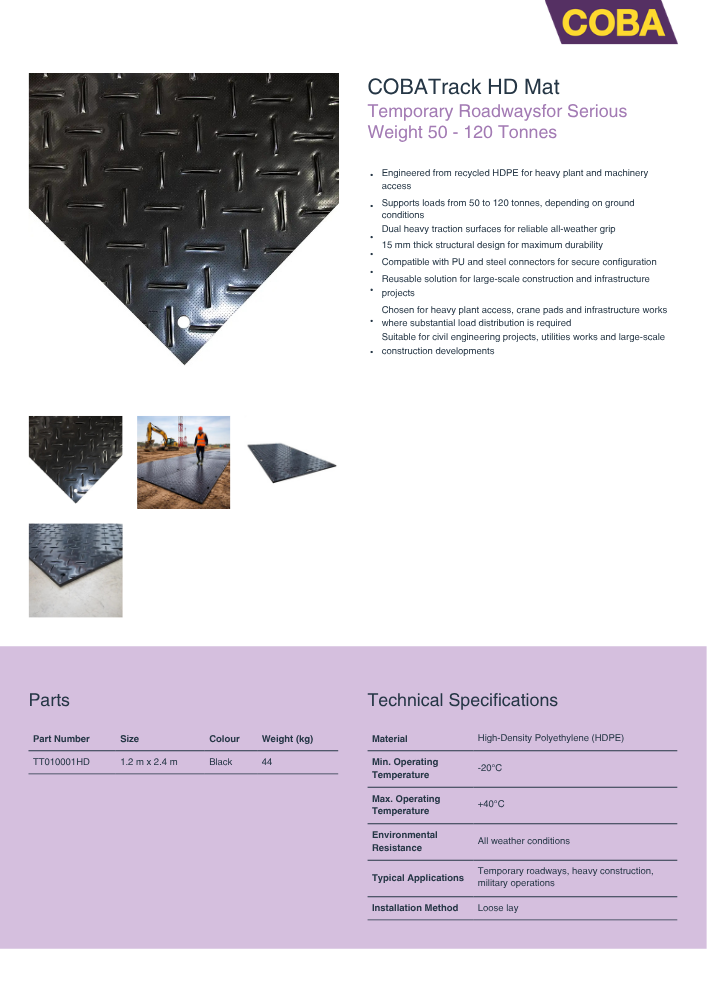

Technical Specifications
- Product type: Temporary roadway mat system
- Material: High-density polyethylene (HDPE)
- Recycled material: Yes
- Mat dimensions: 2400 x 1200mm
- Mat thickness: 15mm
- Mat colour: Black
- Mat weight: 44kg
- Surface: Dual heavy traction surfaces
- Load capacity: 50 to 120 tonnes depending on ground conditions
- Minimum operating temperature: -20°C
- Maximum operating temperature: +40°C
- Environmental resistance: Suitable for all-weather conditions
- Installation method: Loose lay
- Compatible connectors: PU or steel
Installation and Connection
COBATrack HD Mats are loose laid over the required supporting surface and joined using compatible PU or steel connectors.
Steel connectors are positioned within the designated connection points between adjoining mats. PU connectors are secured while the mats are laid side by side using their supplied fastening components.
The process can then be repeated in the required direction until the temporary roadway or access area is complete.
Once the temporary requirement has ended, the installation can be dismantled in reverse and the mats and connectors stored for reuse.
Please note: Installation should be carried out by at least two people.

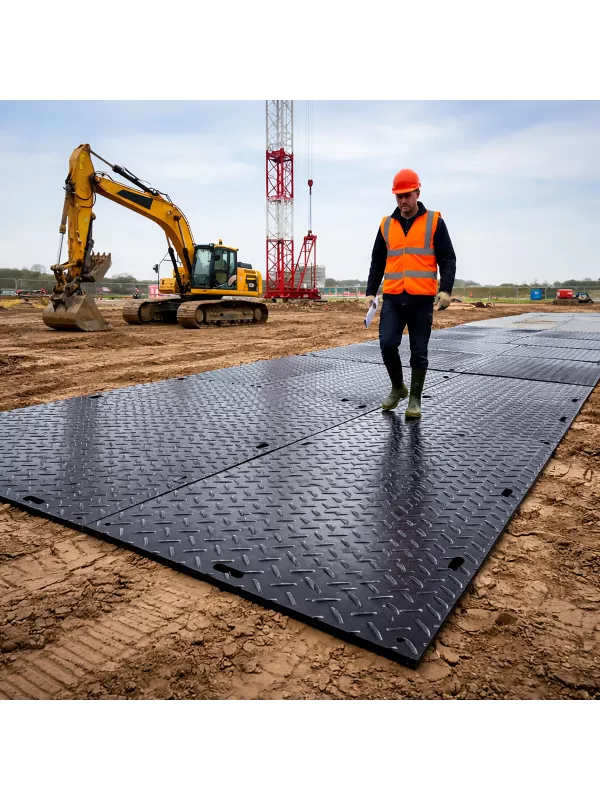

Temporary Roadways for Major Construction Projects
Heavy construction equipment can create substantial rutting, displacement and ground damage when driven directly over vulnerable terrain.
COBATrack HD creates a defined temporary roadway designed to distribute heavy vehicle loads while providing a more suitable running surface for plant and machinery.
Its 50 to 120 tonne load range makes it particularly suited to civil engineering, utilities, infrastructure and major construction projects where standard ground protection mats may not provide sufficient capacity.
Reusable Access Without Permanent Groundworks
Creating permanent hardstanding for temporary vehicle access can be costly and unnecessary. COBATrack HD provides an alternative that can be deployed for the required period and removed when access is no longer needed.
The reusable mats and connectors can then be moved to another section of the site or stored for future projects, providing a flexible solution for contractors and organisations with changing access requirements.
Choose the Right COBATrack HD Components
Select the COBATrack HD Mat or the required PU or steel connector from the available product options.
For larger temporary roadways or more complex installations, contact us with the required area, site conditions and intended vehicle types and we can help identify the appropriate quantity of mats and connectors.
