COBAswitch Insulation Matting (SM01)
COBAswitch Insulation Matting for High Voltage Areas
COBAswitch Insulation Matting is specialist safety matting designed for high voltage areas, providing personal protection against electrical shocks when working in front of live switchboards and electrical equipment. Engineered for safety-critical environments, COBAswitch Insulation Matting delivers effective electrical insulation alongside reliable underfoot grip.

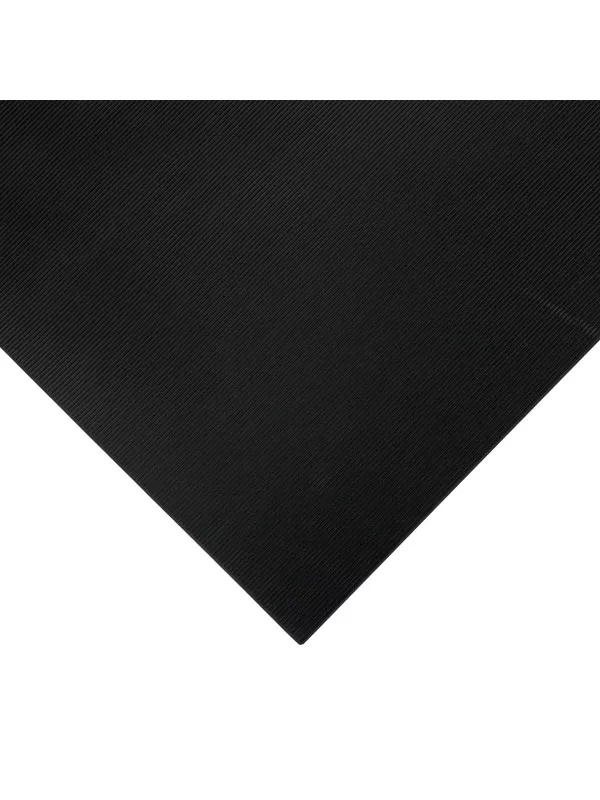

Manufactured from a natural rubber base polymer, the mat features a fine fluted rib surface finish to enhance grip and stability. The rubber compound offers effective electrical insulating properties, with individual voltage testing depending on thickness. The 6 mm version is tested to 11,000 volts for 450 volt rated working, while the 9 mm version is tested to 15,000 volts for 650 volt rated working. The 9 mm thickness also conforms to BS921/1976.Available in 6 mm and 9 mm thicknesses, COBAswitch Insulation Matting performs within an operating temperature range of -20°C to +80°C and is suitable for dry indoor environments. Installation is via a loose lay method, allowing flexible positioning in front of open switchboards and other high voltage areas. Cleaning can be carried out by hosing down or pressure washing using a mild detergent.
COBAswitch Insulation Matting is supplied in black
and available in the following sizes and configurations:
- 1.2 m x 5 m (6 mm) – Weight: 44.1 kg
- 1.2 m x 5 m (9 mm) – Weight: 67 kg
- 1.2 m x 10 m (6 mm) – Weight: 88.2 kg
- 1.2 m x 10 m (9 mm) – Weight: 134 kg
- 1.2 m x per linear metre (6 mm) – Weight: 8.82 kg
- 1.2 m x per linear metre (9 mm) – Weight: 13.4 kg
- 0.9 m x 5 m (6 mm) – Weight: 33.1 kg
- 0.9 m x 5 m (9 mm) – Weight: 55.2 kg
- 0.9 m x 10 m (6 mm) – Weight: 62 kg
- 0.9 m x 10 m (9 mm) – Weight: 110.4 kg
- 0.9 m x per linear metre (6 mm) – Weight: 6.88 kg
- 0.9 m x per linear metre (9 mm) – Weight: 11.04 kg

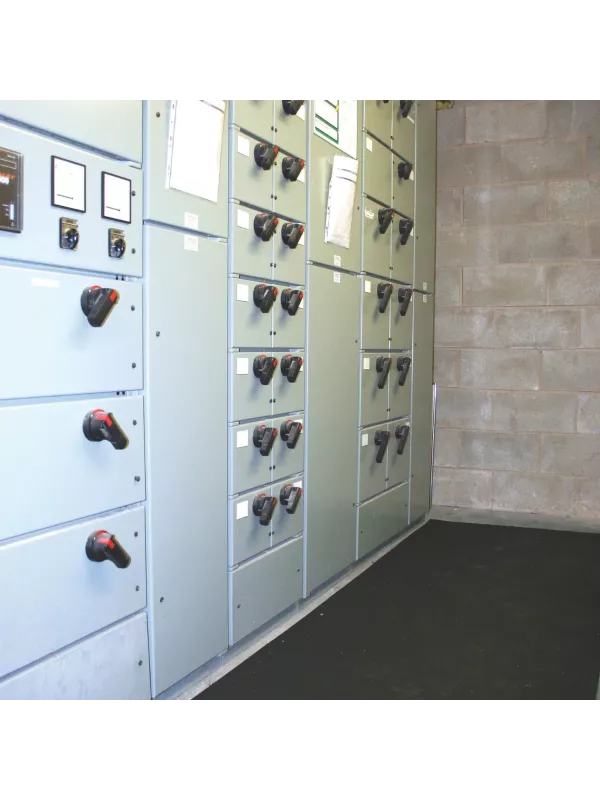

Typical applications include high voltage areas and open switchboards, where reliable electrical insulation and underfoot grip are essential for worker safety.
COBAswitch Insulation Matting provides a dependable and compliant solution for electrical safety in industrial environments.
